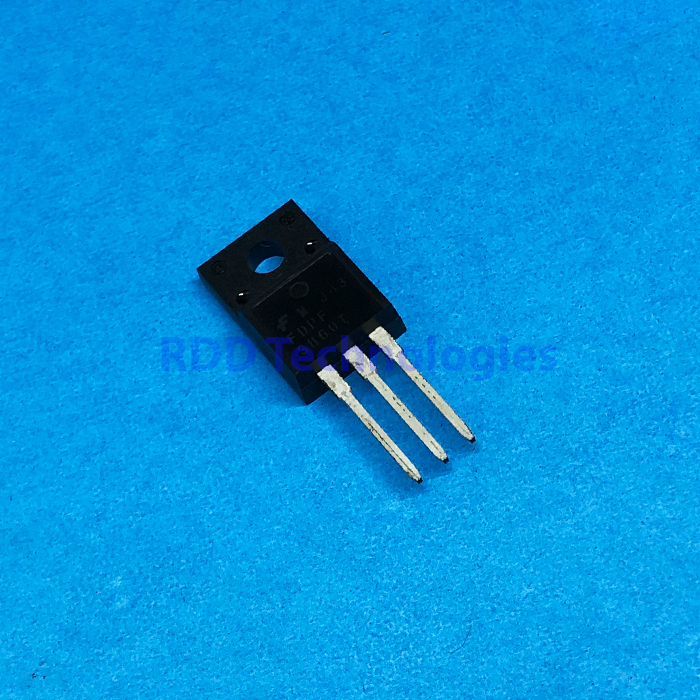

FDPF3860T

MOSFET 100V 20A 38.2mOhm

SKU: 3701194-L32.22
Brand:
FAIRCHILD SEMICONDUCTOR
Price: Rp 10.000
Rp 2.000
Specifications:
Manufacturer:Fairchild Semiconductor
Product Category:MOSFET
RoHS:Yes
Id - Continuous Drain Current:20 A
Vds - Drain-Source Breakdown Voltage:100 V
Rds On - Drain-Source Resistance:38.2 mOhms
Transistor Polarity:N-Channel
Vgs - Gate-Source Breakdown Voltage:20 V
Maximum Operating Temperature:+ 150 C
Pd - Power Dissipation:33.8 W
Mounting Style:Through Hole
Package / Case:TO-220-3
Brand:Fairchild Semiconductor
Channel Mode:Enhancement
Configuration:Single
Fall Time:7 ns
Minimum Operating Temperature:- 55 C
Rise Time:17 ns
Typical Turn-Off Delay Time:24 ns
DatasheetSize
FDPF3860T.pdf577 KB
