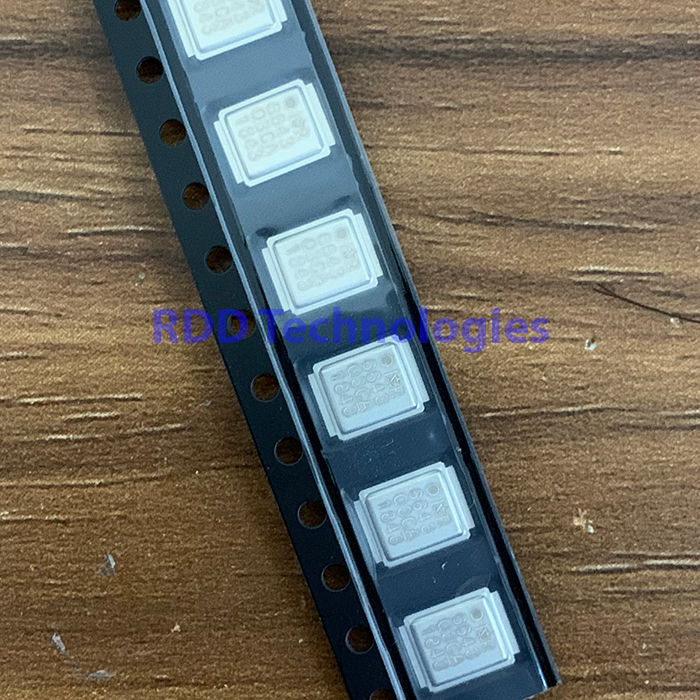

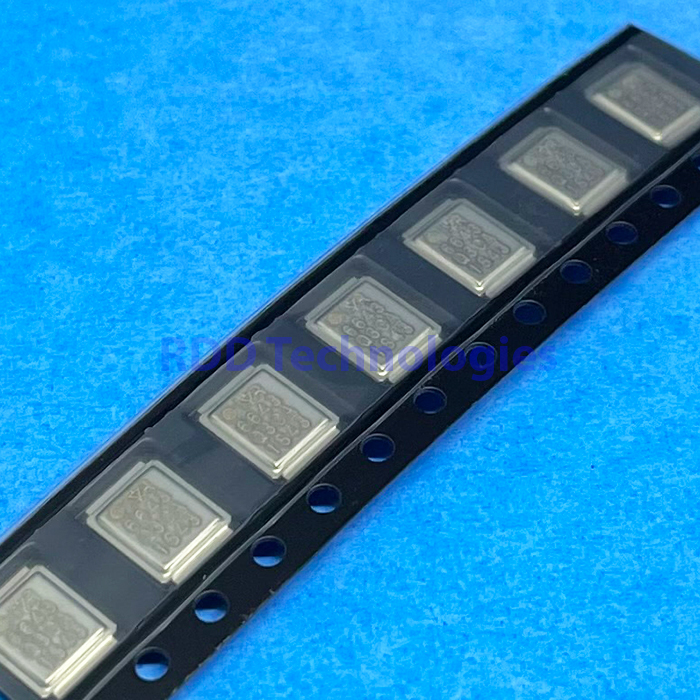

IRF6643TRPBF IR HEXFET
MOSFET 150V 1 N-CH HEXFET 34.5mOhms 39nC IRF6643TRPBF
SKU: 36101041-L31.67
Brand:
Price: Rp 75.000
Specifications:
| Manufacturer: | International Rectifier |
| Product Category: | MOSFET |
| RoHS: | Yes |
| Id - Continuous Drain Current: | 6.2 A |
| Vds - Drain-Source Breakdown Voltage: | 150 V |
| Rds On - Drain-Source Resistance: | 29 mOhms |
| Transistor Polarity: | N-Channel |
| Vgs - Gate-Source Breakdown Voltage: | 20 V |
| Vgs th - Gate-Source Threshold Voltage: | 4 V |
| Qg - Gate Charge: | 39 nC |
| Maximum Operating Temperature: | + 150 C |
| Pd - Power Dissipation: | 89 W |
| Mounting Style: | SMD/SMT |
| Package / Case: | DirectFET-3 |
| Packaging: | Reel |
| Brand: | International Rectifier |
| Channel Mode: | Enhancement |
| Ciss - Input Capacitance: | 2.34 nF |
| Configuration: | Single |
| Fall Time: | 4.4 ns |
| Forward Transconductance - Min: | 16 S |
| Minimum Operating Temperature: | - 40 C |
| Rise Time: | 5 ns |
| Typical Turn-Off Delay Time: | 13 ns |
| Datasheet | Size |
|---|---|
 irf6643pbf.pdf | 445.58 KB |
