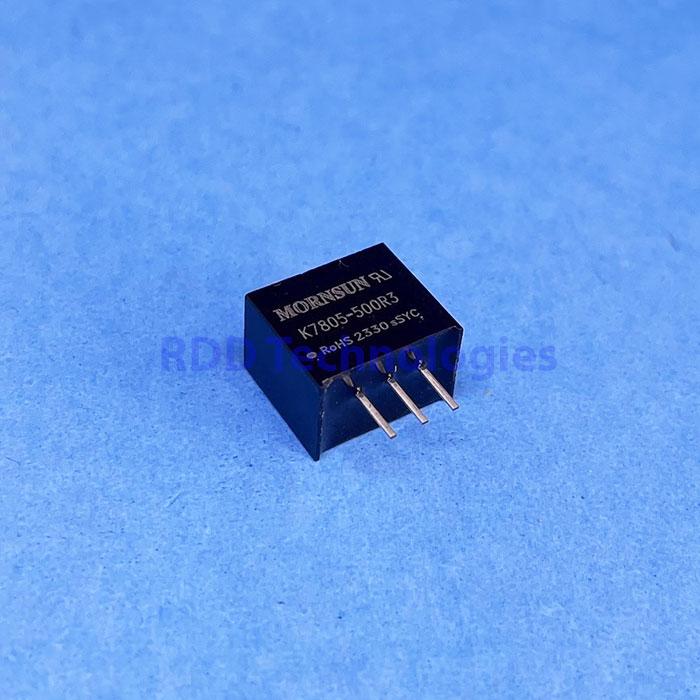

DC TO DC CONV. 24 TO 5V NON ISOLATED MORNSUN K7805-500R3
Rp40.000
Wide voltage input non-isolated regulated output modular power supply (Three-terminal switching voltage regulator)
Stok 100
| Packaging | Through Hole |
| Height | 10.2mm |
| Switching Frequency | 2.4MHz |
| Ripple Noise | 45mVp-p |
| Quiescent Supply Current | 200uA |
| Features | Short Circuit Protection;Automatic fault recovery |
| Capacitive Load(Max) | 3300uF |
| Output Current(Max) | 500mA |
| Conversion Efficiency | 93.00% |
| Voltage – Supply | 6V~36V |
| Number of Outputs | 1 |
| Output Voltage | 5V |
| Operating Temperature Range | -40℃~+85℃ |
| Length | 11.6mm |
| Width | 7.5mm |
| Output Voltage Accuracy | ±1% |
