680UF/35V ZLH RUBYCON 10×23

Name: 680UF/35V ZLH RUBYCON 10x23 - RDD Technologies
SKU: 2101186-L49.09
Price: 10000 IDR
Availability: InStock

Rp10.000

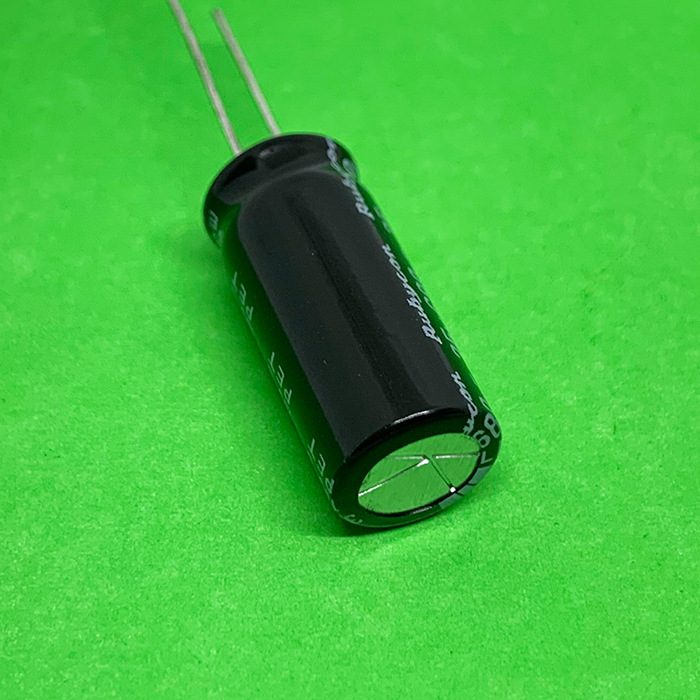

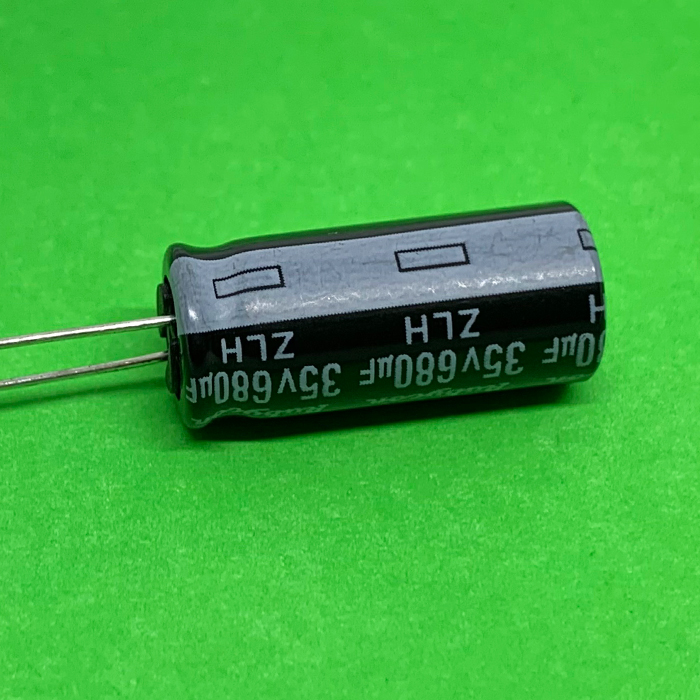

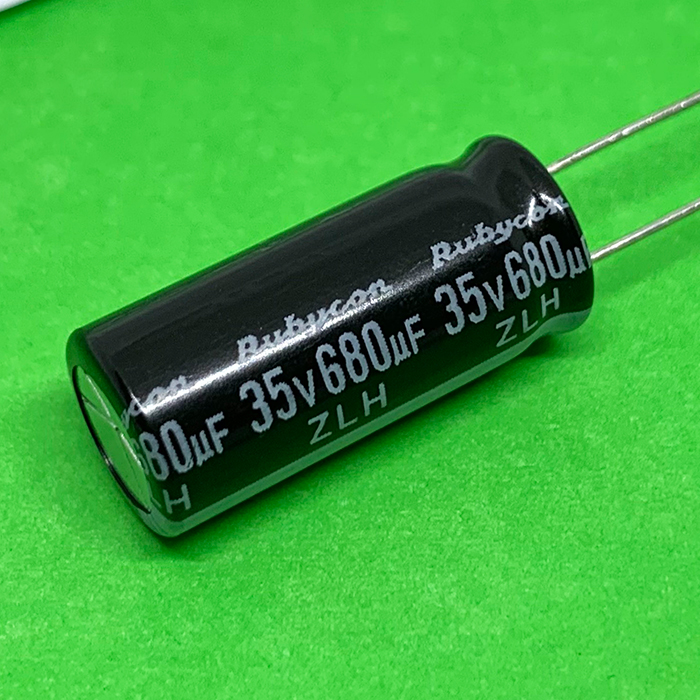

Capacitor 680uF/35V Rubycon ZLH

Stok 213

SKU: 2101186-L49.09 Kategori: Aluminum Electrolytic Capacitors - Leaded

Capacitance	680µF
Tolerance	±20%
Voltage – Rated	35V
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current – Low Frequency	1.238A @ 120Hz
Ripple Current – High Frequency	2.25A @ 100kHz
Impedance	18 mOhms
Lead Spacing	0.197″ (5.00mm)
Size / Dimension	0.394″ Dia (10.00mm)
Height – Seated (Max)	0.984″ (25.00mm)
Mounting Type	Through Hole

680UF/35V ZLH RUBYCON 10×23

Stok 213
