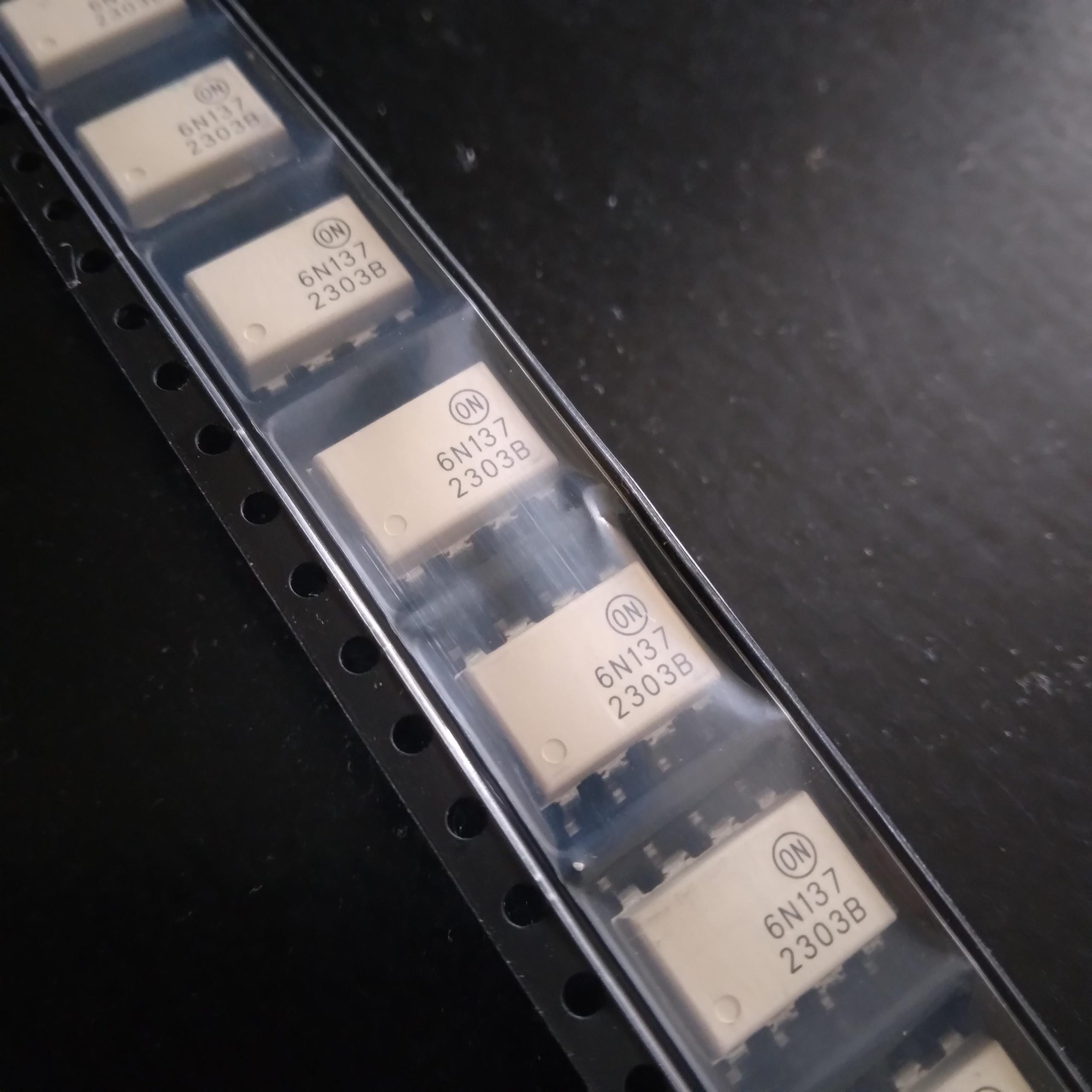

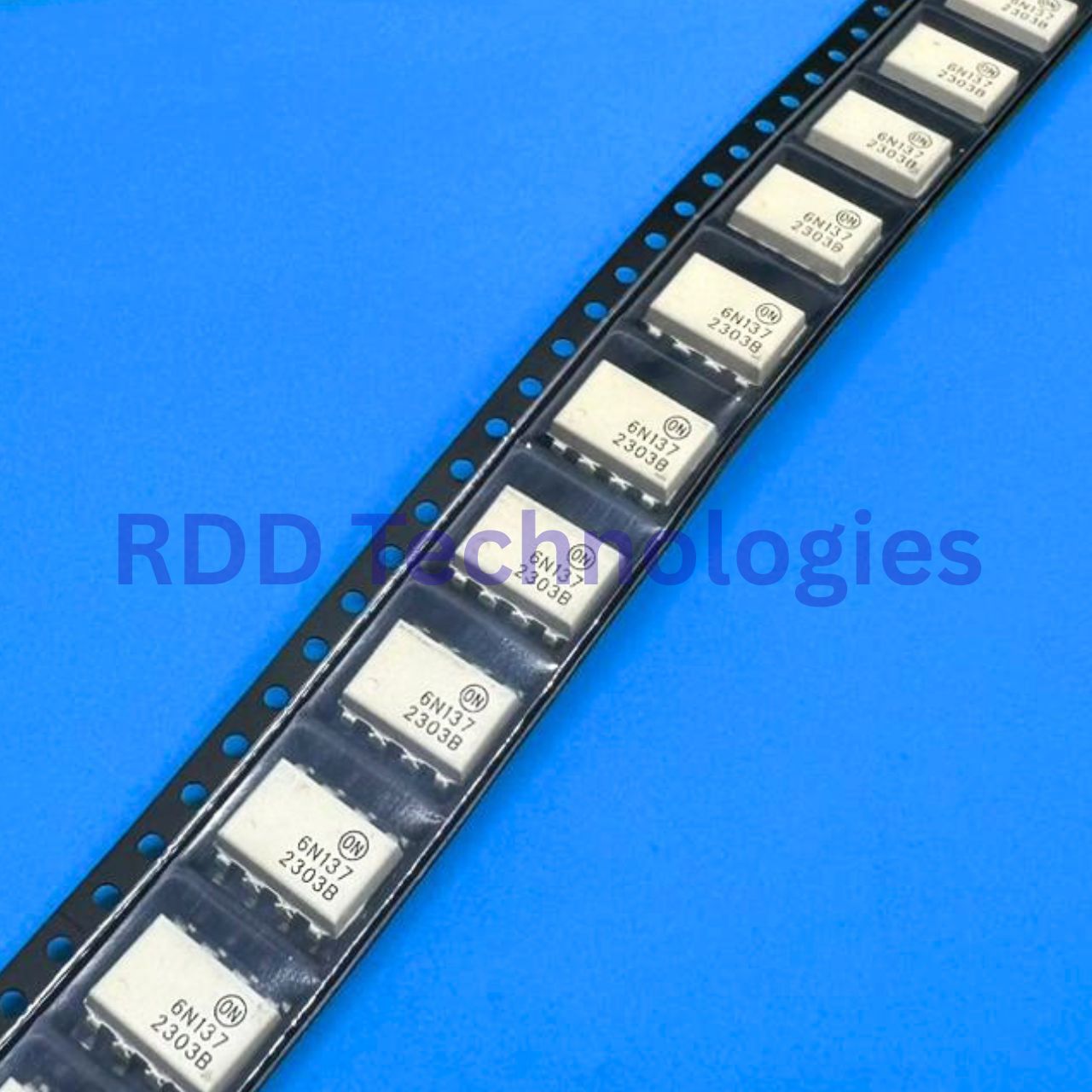

6N137SDM ON SEMI SOP-8
Rp25.000
8-Pin DIP High-Speed Logic Gate Optocouplers
20 in stock
| Manufacturer | onsemi |
| Packaging | SOP-8-2.54mm |
| Power Dissipation | 100mW |
| Output Current | 13mA |
| Low Level Delay Time | 75ns |
| High Level Delay Time | 75ns |
| Features | Output enable control;Open-collector output |
| Reverse Voltage | 5V |
| Voltage – Forward(Vf) | 1.45V |
| Voltage – Supply | 4.5V~5.5V |
| Operating Temperature | -40℃~+85℃ |
| CMTI(kV/us) | 10kV/us |
| Number of Channels | 1 |
| Input threshold current | 20mA |
| Isolation Voltage(Vrms) | 5kV |
| Input Type | DC |
