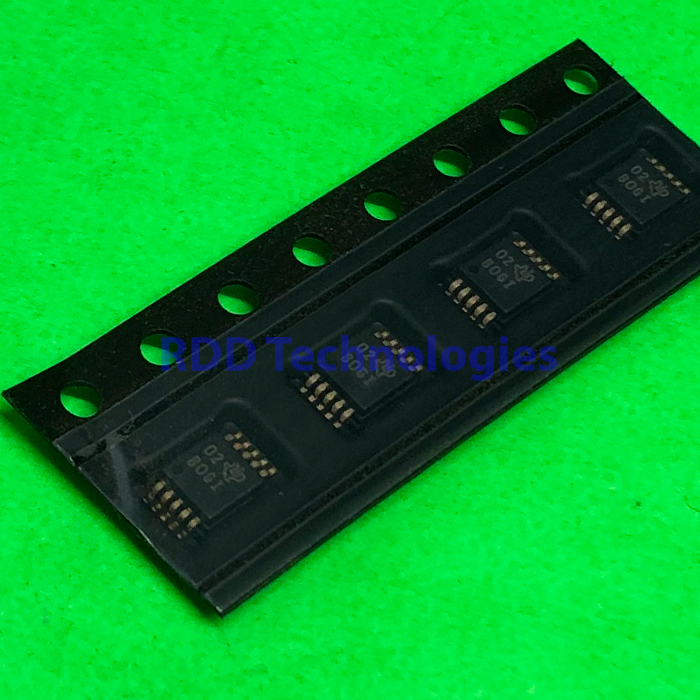

ADS1115IDGSR TI MSOP10
Rp112.000
Analog to Digital Converters – ADC 16B ADC w/ Int MUX P GA Comp Osc & Ref A A 595-ADS1115IDGST
Stok 53
| RoHS: | Yes |
| Mounting Style: | SMD/SMT |
| Package/Case: | VSSOP-10 |
| Resolution: | 16 bit |
| Number of Channels: | 2 Channel/4 Channel |
| Interface Type: | I2C |
| Sampling Rate: | 860 S/s |
| Input Type: | Differential/Single-Ended |
| Architecture: | Sigma-Delta |
| Analogue Supply Voltage: | 2 V to 5.5 V |
| Digital Supply Voltage: | 2 V to 5.5 V |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 125 C |
| Brand: | Texas Instruments |
| INL – Integral Nonlinearity: | 1 LSB |
| Moisture Sensitive: | Yes |
| Number of Converters: | 1 Converter |
| Pd – Power Dissipation: | 900 uW |
| Power Consumption: | 300 uW |
| Supply Voltage – Max: | 5.5 V |
| Supply Voltage – Min: | 2 V |
| Unit Weight: | 23,700 mg |
