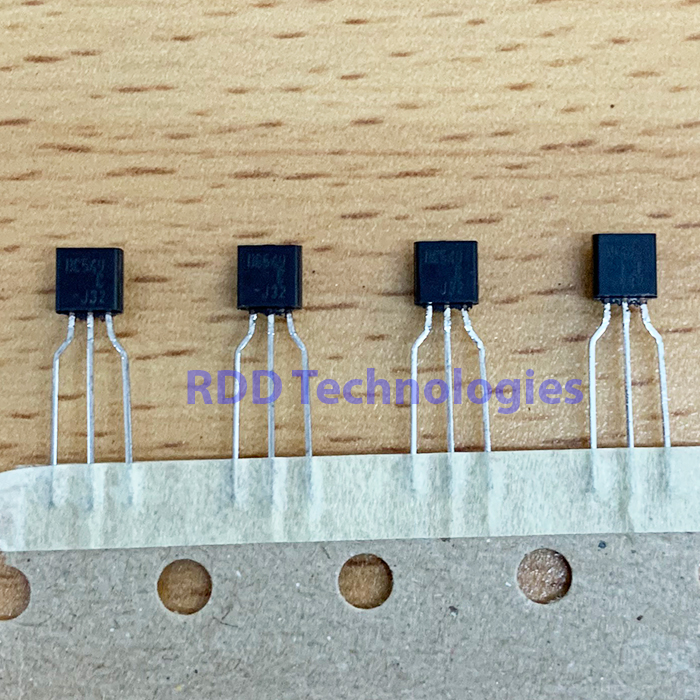

BC549CTA ON TO-92

Name: BC549CTA ON TO-92 - RDD Technologies
Brand: ON SEMICONDUCTOR
SKU: 15101147-L58.21
Price: 2500 IDR
Availability: InStock

Rp2.500

Bipolar Transistors – BJT NPN 30V 100mA

Stok 188

SKU: 15101147-L58.21 Kategori: BJT Brand: ON SEMICONDUCTOR

RoHS:	Yes
Technology:	Si
Mounting Style:	Through Hole
Package/Case:	TO-92-3 Kinked Lead
Transistor Polarity:	NPN
Configuration:	Single
Maximum DC Collector Current:	100 mA
Collector- Emitter Voltage VCEO Max:	30 V
Collector- Base Voltage VCBO:	30 V
Emitter- Base Voltage VEBO:	5 V
Collector-Emitter Saturation Voltage:	250 mV
Pd – Power Dissipation:	500 mW
Gain Bandwidth Product fT:	300 MHz
Maximum Operating Temperature:	+ 150 C
Brand:	onsemi
Continuous Collector Current:	100 mA
Unit Weight:	240 mg

BC549CTA ON TO-92

Stok 188
