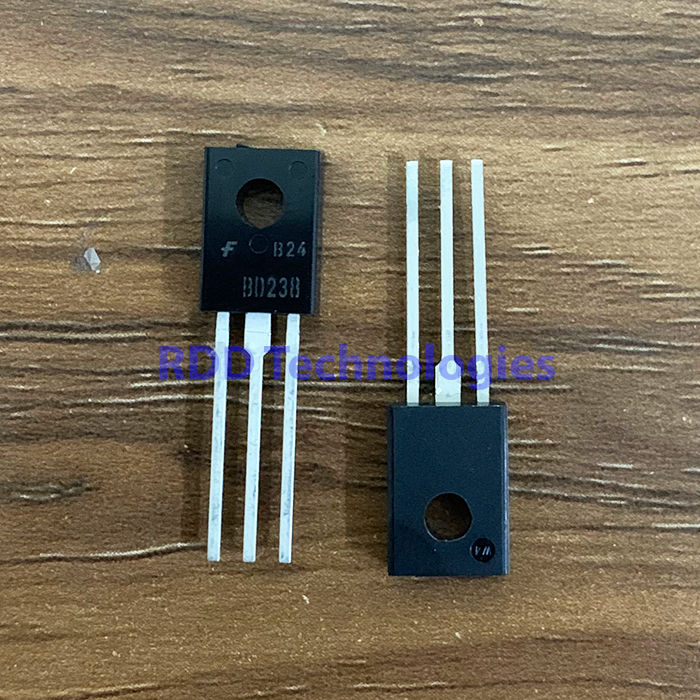

BD238STU FSC TO-126
Rp10.000
Bipolar Transistors – BJT PNP Epitaxial Sil
| RoHS: | Yes |
| Technology: | Si |
| Mounting Style: | Through Hole |
| Package / Case: | TO-126-3 |
| Transistor Polarity: | PNP |
| Configuration: | Single |
| Maximum DC Collector Current: | 2 A |
| Collector- Emitter Voltage VCEO Max: | 80 V |
| Collector- Base Voltage VCBO: | 100 V |
| Emitter- Base Voltage VEBO: | 5 V |
| Pd – Power Dissipation: | 25 W |
| Gain Bandwidth Product fT: | 3 MHz |
| Minimum Operating Temperature: | – 65 C |
| Maximum Operating Temperature: | + 150 C |
| Brand: | onsemi |
| Continuous Collector Current: | – 2 A |
| DC Collector/Base Gain hfe Min: | 40 |
| Unit Weight: | 0.026843 oz |
