| RoHS: | Yes |
| Brand: | Vishay Semiconductors |
| Peak Reverse Voltage: | 100 V |
| Maximum RMS Reverse Voltage: | 70 V |
| Forward Continuous Current: | 1A |
| Max Surge Current: | 50 A |
| Forward Voltage Drop: | 1.1 V |
| Maximum Reverse Leakage Current: | 5 uA |
| Maximum Operating Temperature: | + 150 C |
| Length: | 8.51 mm |
| Width: | 6.5 mm |
| Height: | 3.3 mm |
| Mounting Style: | SMD/SMT |
| Package / Case: | DFS |
| Minimum Operating Temperature: | – 55 C |

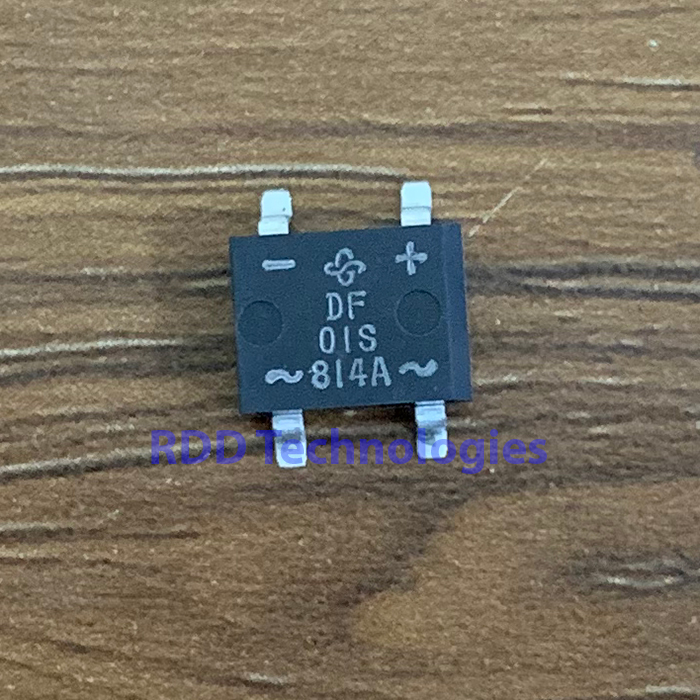

BRIDGE RECTIFIER 1PH 1A 100V SMD DF01S-E3/45 VISHAY
Rp7.250
DF01S-E3/45
Bridge Rectifiers 1.0 Amp 100 Volt
Stok 8
