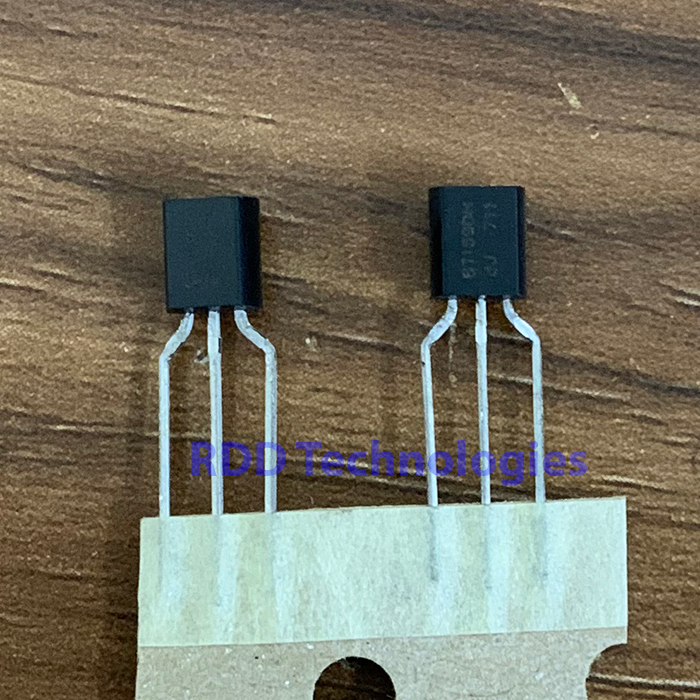

BT169D,116 WeEn Semiconductors TO-92
Rp4.000
SCRs TAPERA TRIAC
| RoHS: | Yes |
| Rated Repetitive Off-State Voltage VDRM: | 400 V |
| Off-State Leakage Current @ VDRM IDRM: | 50 uA |
| On-State RMS Current – It RMS: | 800 mA |
| Maximum Gate Peak Inverse Voltage: | 5 V |
| Gate Trigger Voltage – Vgt: | 500 mV |
| Gate Trigger Current – Igt: | 50 uA |
| Maximum Operating Temperature: | + 125 C |
| Mounting Style: | Through Hole |
| Package / Case: | SOT-54-3 |
| Brand: | WeEn Semiconductors |
| Holding Current Ih Max: | 5 mA |
| Non Repetitive On-State Current: | 9 A |
| Unit Weight: | 0.050459 oz |
