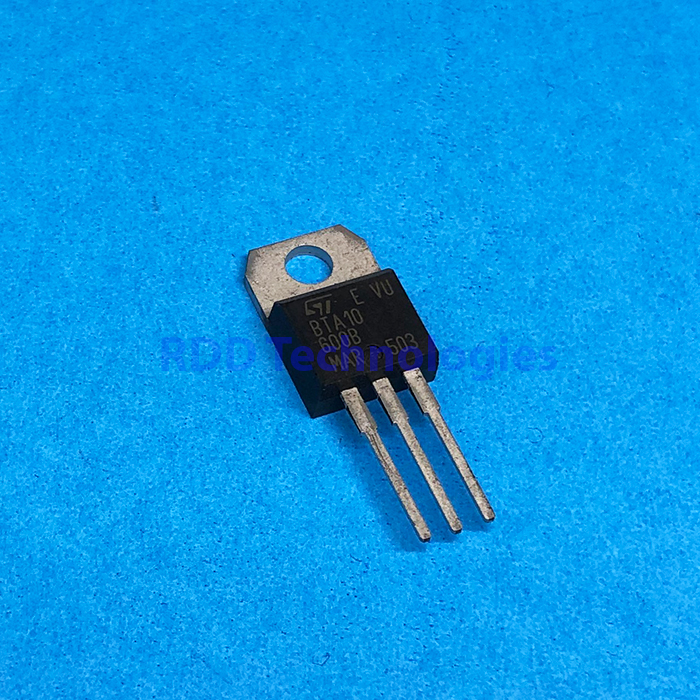

BTA10-600B ST TO-220

Name: BTA10-600B ST TO-220 - RDD Technologies
SKU: 36101012-L13.43
Price: 10000 IDR
Availability: InStock

Rp10.000

BTA10-600B
10A TRIACS

Stok 6

SKU: 36101012-L13.43 Kategori: Thyristors

RoHS	:	Yes
Brand	:	STMicroelectronics
On-State RMS Current – It RMS	:	10A
Non Repetitive On-State Current	:	105 A
Rated Repetitive Off-State Voltage VDRM	:	600 V
Off-State Leakage Current @ VDRM IDRM	:	5 uA
On-State Voltage	:	1.55 V
Holding Current Ih Max	:	50 mA
Gate Trigger Voltage – Vgt	:	1.3 V
Gate Trigger Current – Igt	:	100 mA
Maximum Operating Temperature	:	+ 125 C
Mounting Style	:	Through Hole
Package / Case	:	TO-220AB-3
Minimum Operating Temperature	:	– 40 C

BTA10-600B ST TO-220

Stok 6
