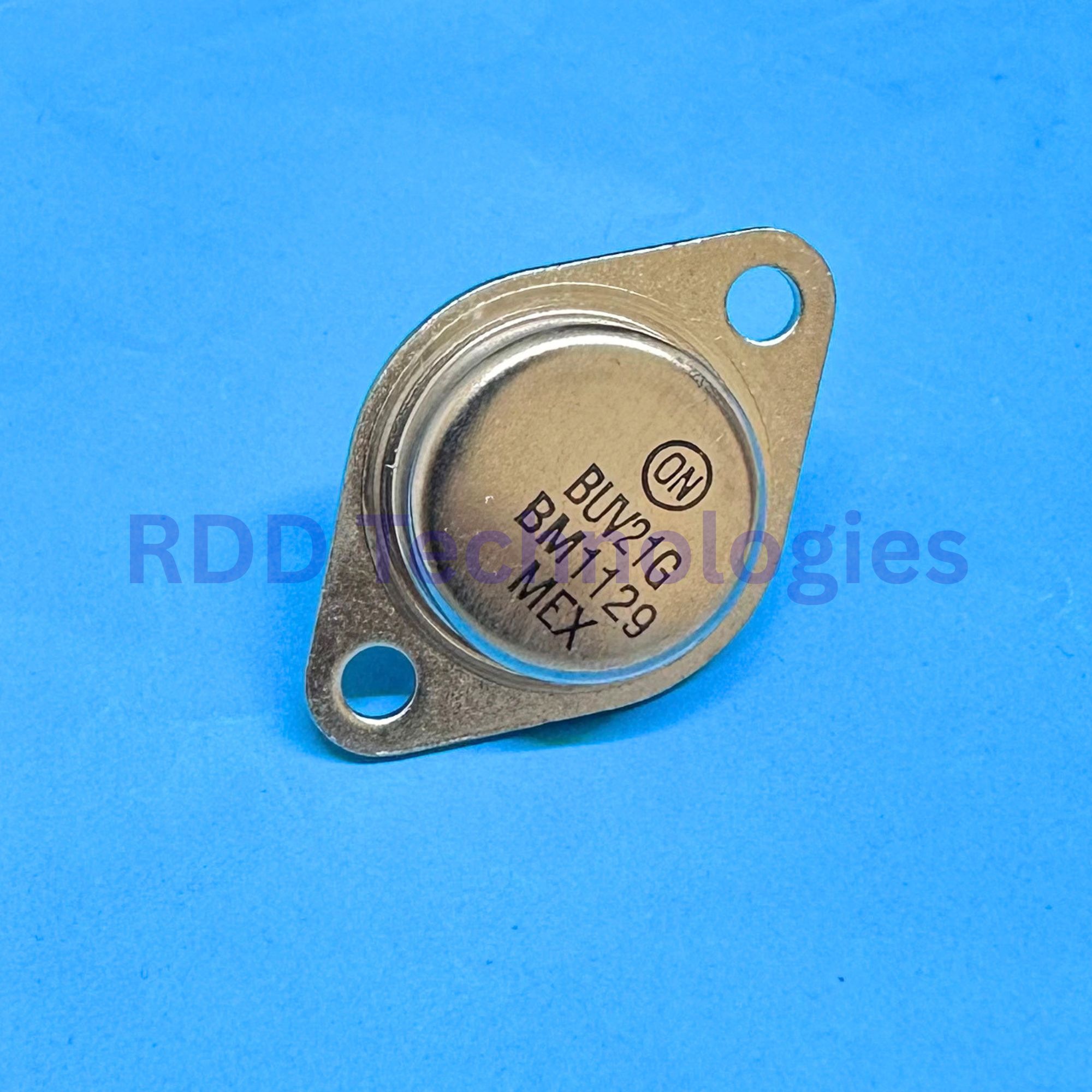

BUV21G ON TO-3

Rp550.000

Bipolar Transistors – BJT 40A 200V 250W NPN

Add to Wishlist
Add to Wishlist
SKU: 17126 Kategori:
RoHS: Yes
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-204-2
Transistor Polarity: NPN
Configuration: Single
Maximum DC Collector Current: 40 A
Collector- Emitter Voltage VCEO Max: 200 V
Collector- Base Voltage VCBO: 250 V
Emitter- Base Voltage VEBO: 7 V
Collector-Emitter Saturation Voltage: 1.5 V
Pd – Power Dissipation: 250 W
Gain Bandwidth Product fT: 8 MHz
Minimum Operating Temperature: – 65 C
Maximum Operating Temperature: + 150 C
Brand: onsemi
Continuous Collector Current: 40 A
DC Collector/Base Gain hfe Min: 20
Unit Weight: 0.485440 oz
