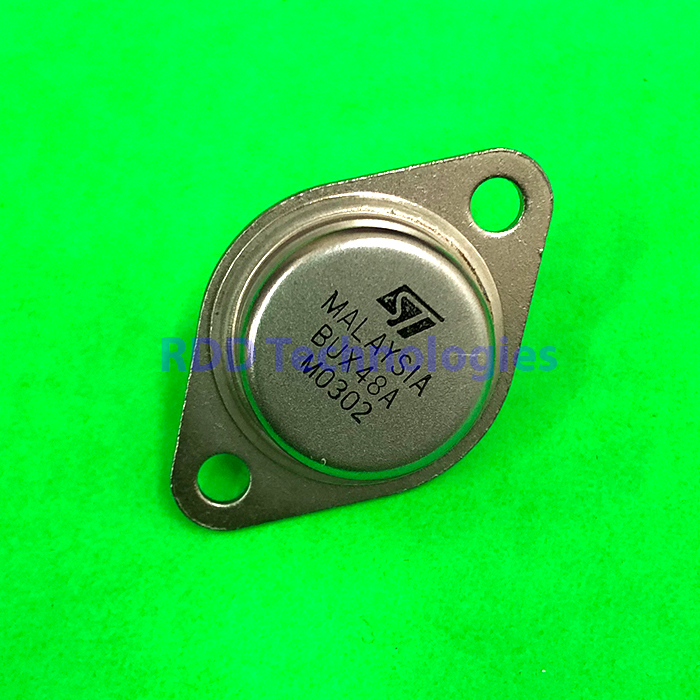

BUX48A ST TO-3
Rp22.500
Bipolar Transistors – BJT NPN High Volt Power
| RoHS: | Yes |
| Technology: | Si |
| Mounting Style: | Through Hole |
| Package / Case: | TO-3 |
| Transistor Polarity: | NPN |
| Configuration: | Single |
| Maximum DC Collector Current: | 15 A |
| Collector- Emitter Voltage VCEO Max: | 450 V |
| Emitter- Base Voltage VEBO: | 7 V |
| Collector-Emitter Saturation Voltage: | 1.5 V |
| Pd – Power Dissipation: | 175 W |
| Minimum Operating Temperature: | – 65 C |
| Maximum Operating Temperature: | + 150 C |
| Brand: | STMicroelectronics |
| Continuous Collector Current: | 15 A |
| DC Collector/Base Gain hfe Min: | 8 at 8 A, 5 V |
| Unit Weight: | 0.225789 oz |
