CAP FILM 1.5nF/100V WIMA FKP2D011501D00JSSD
Rp5.000

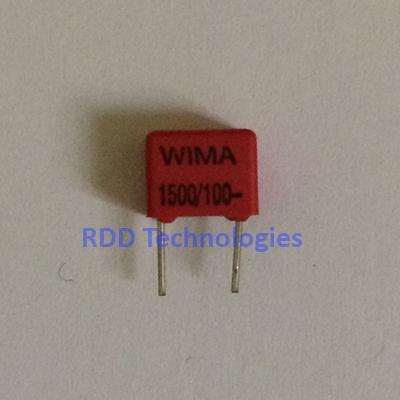

WIMA Film Capacitor 1.5nF/100V FKP2 Series
Add to Wishlist
Add to Wishlist
Out of stock
| RoHS: | Yes |
| Brand: | WIMA |
| Termination Style: | Radial |
| Product: | AC and Pulse Film Capacitors |
| Dielectric: | Polypropylene (PP) |
| Capacitance: | 1500 pF |
| Voltage Rating AC: | 63 V |
| Voltage Rating DC: | 100 V |
| Tolerance: | 5% |
| Lead Spacing: | 5 mm |
| Minimum Operating Temperature: | – 55 C |
| Maximum Operating Temperature: | + 100 C |
| Case Height: | 6 mm |
| Case Length: | 7.2 mm |
| Case Width: | 4.5 mm |
| Dissipation Factor DF: | 4 |
| Load Life: | 300000 h |
| Lead Style: | Straight |
| Load Life: | 300000 h |
| Number of Pins: | 2 |
| Brand | WIMA |
|---|---|
| Cap Voltage | 100V |
| Capacitance | 1.5nF |
