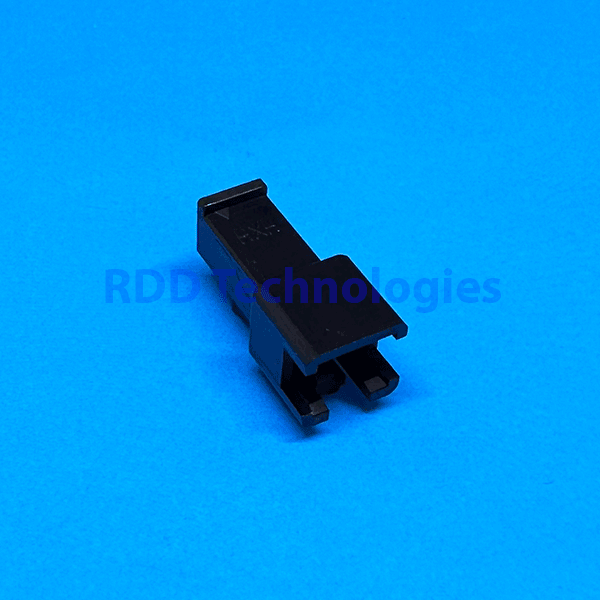

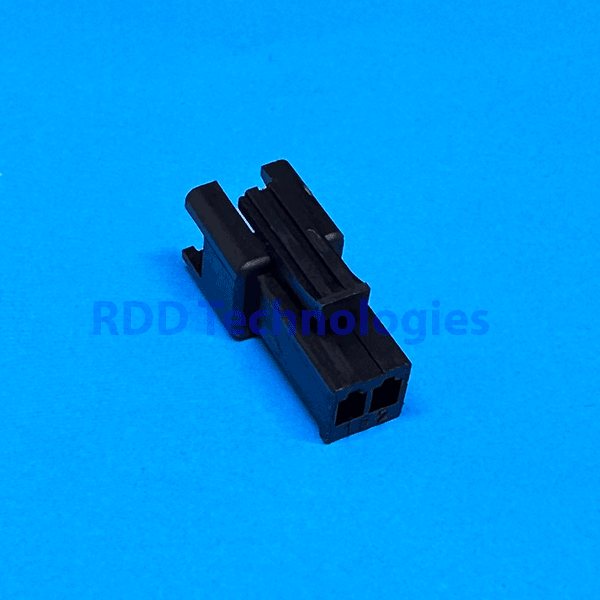

CONNECTOR SM-2R FEMALE FOR CABLE

Rp300

This small-type relay connector is equipped with a panel lock mechanism, and offers high reliability with a smaller size, more dense design, and the use of micro-currents.

[Features]

This small-type relay connector with 2.5-mm pitch offers high reliability with a smaller size, more dense design, and the use of micro-currents.
High contact pressure, dual contact.
Shell type housing.
Applicable to a wide range of panels.
Arm lock mechanism.

Series	SM connector
Category	Wire-to-Wire Connectors
Wiring type	Crimp style
Panel mounting	Panel lock
Array (Insertion part)	Single-row
Lock	Secure lock (Outer), Secure lock (Center)
Standard	TÜV, UL
Pitch	2.5 mm
Circuit	2
Current rating	3 A AC/DC
Voltage rating	250 V AC/DC
Temperature range	-25 ℃ to +85 ℃
Insulation resistance	500 MΩ min.
Withstanding voltage	There shall be no breakdown or flashover while applying 1,500 VAC for one minute.
Conductor size	AWG # 28 , # 26 , # 24 , # 22 or 0.08 mm2 to 0.33 mm2
Insulation O.D.	φ 1.2 mm to φ 1.8 mm
