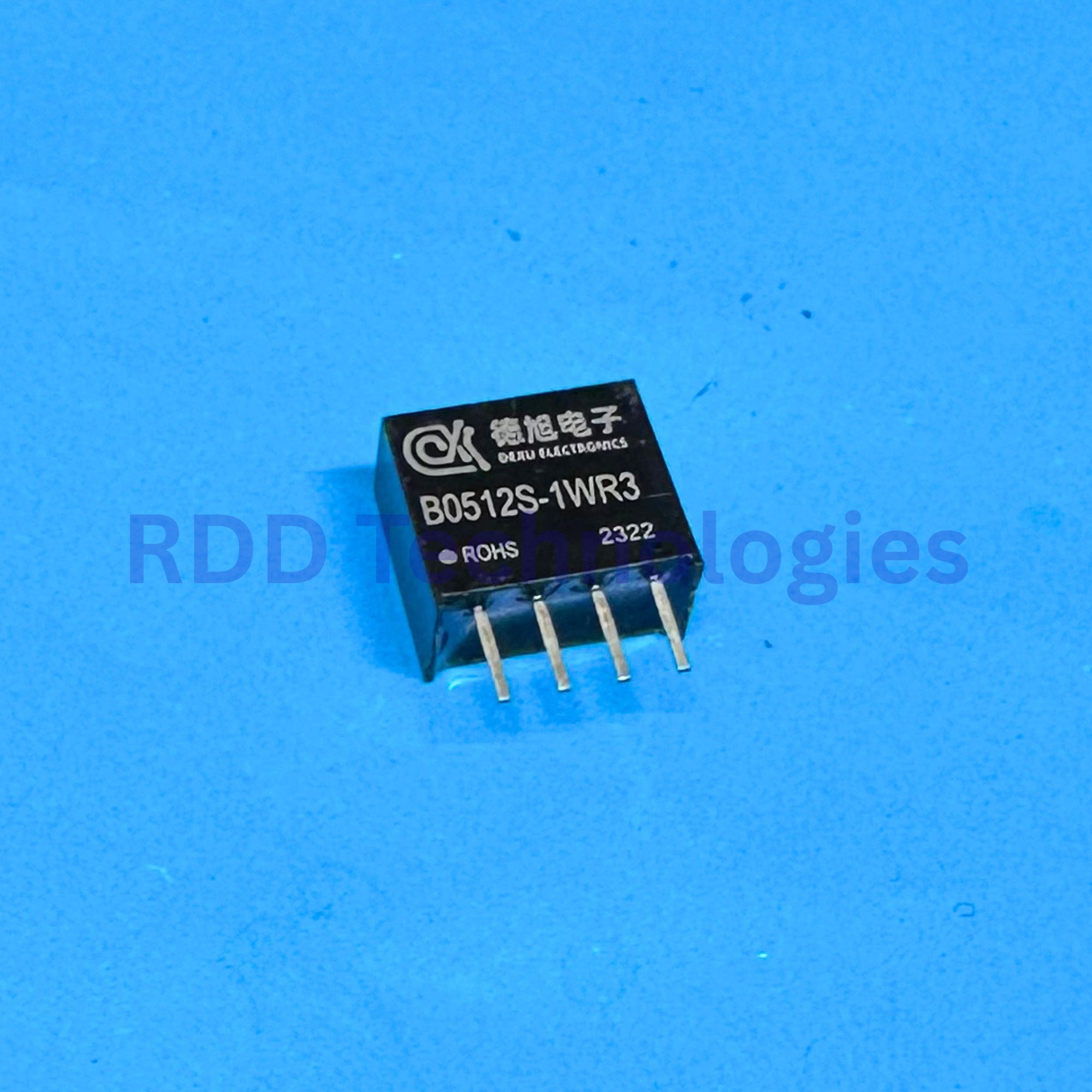

DC TO DC CONVERTER K-CUT B0512S-1WR3 5V TO 12V
Rp40.000
1W Isolated Non-Regulated Single-Output DC-DC Module Power Supply with Fixed Voltage Input
Stok 91
| Packaging : | SIP,11.6x6mm |
| Vin : | 5V |
| type : | Plastic encapsulated type |
| Ripple Noise : | 50mVp-p |
| Vout : | 12V |
| Operating Temperature : | -40℃~+85℃ |
| Capacitive Load(Max) : | 220uF |
| Number of Outputs : | 1 |
| Iout : | 83mA |
| Height : | 10.1mm |
| Frequency – Switching : | 200kHz~400kHz |
| Isolation Voltage(Vrms) : | 1.5kV |
| Features : | Short Circuit Protection;Automatic fault recovery |
| Output Power : | 1W |
| Conversion Efficiency : | 0.83 |
| Length : | 11.6mm |
| Width : | 6mm |
