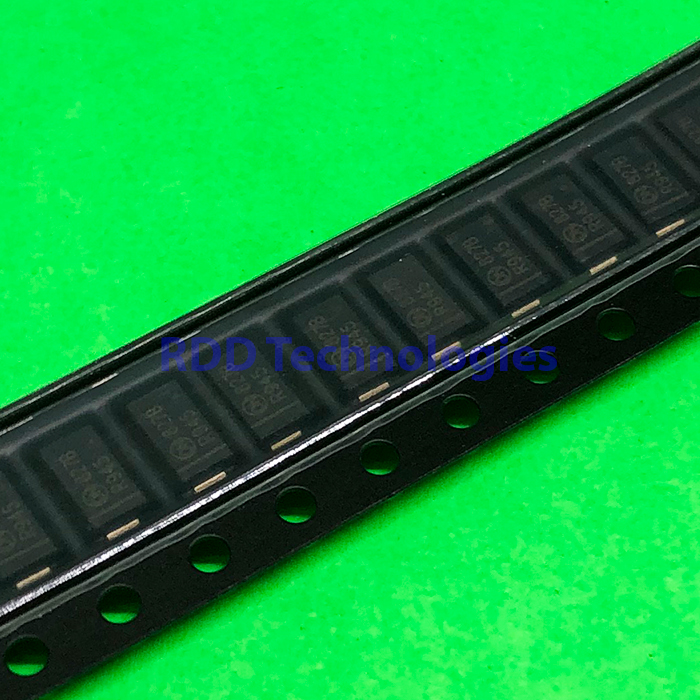

DIODE ZENER 12V 1.5WATT 1SMA5927BT3G ONSEMI SMA
Rp2.500
Zener Diodes 12V 1.5W
Stok 11
| RoHS: | Yes |
| Vz – Zener Voltage: | 12 V |
| Mounting Style: | SMD/SMT |
| Package / Case: | SMA-2 |
| Pd – Power Dissipation: | 500 mW |
| Voltage Tolerance: | 5% |
| Ir – Maximum Reverse Leakage Current: | 500 nA |
| Zz – Zener Impedance: | 6.5 Ohms |
| Minimum Operating Temperature: | – 65 C |
| Maximum Operating Temperature: | + 150 C |
| Configuration: | Single |
| Test Current: | 31.2 mA |
| Brand: | onsemi |
| Height: | 2.1 mm |
| If – Forward Current: | 200 mA |
| Ir – Reverse Current: | 500 nA |
| Length: | 4.32 mm |
| Vf – Forward Voltage: | 1.2 V |
| Width: | 2.6 mm |
| Zener Current: | 125 mA |
| Unit Weight: | 0.002258 oz |
