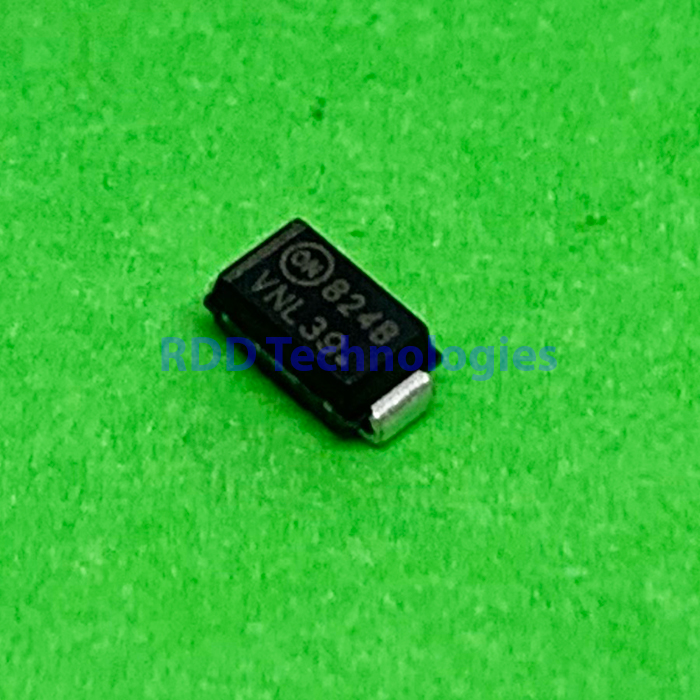

DIODE ZENER 9.1V 1.5WATT 1SMA5924BT3G ONSEMI SMA
Rp4.500
Zener Diodes 9.1V 1.5W
210 in stock
| RoHS: | Yes |
| Vz – Zener Voltage: | 9.1 V |
| Mounting Style: | SMD/SMT |
| Package / Case: | SMA-2 |
| Pd – Power Dissipation: | 500 mW |
| Voltage Tolerance: | 5% |
| Ir – Maximum Reverse Leakage Current: | 2.5 uA |
| Zz – Zener Impedance: | 4 Ohms |
| Minimum Operating Temperature: | – 65 C |
| Maximum Operating Temperature: | + 150 C |
| Configuration: | Single |
| Test Current: | 41.2 mA |
| Brand: | onsemi |
| Height: | 2.1 mm |
| If – Forward Current: | 200 mA |
| Ir – Reverse Current: | 2.5 uA |
| Length: | 4.32 mm |
| Vf – Forward Voltage: | 1.2 V |
| Width: | 2.6 mm |
| Zener Current: | 165 mA |
| Unit Weight: | 0.002258 oz |
