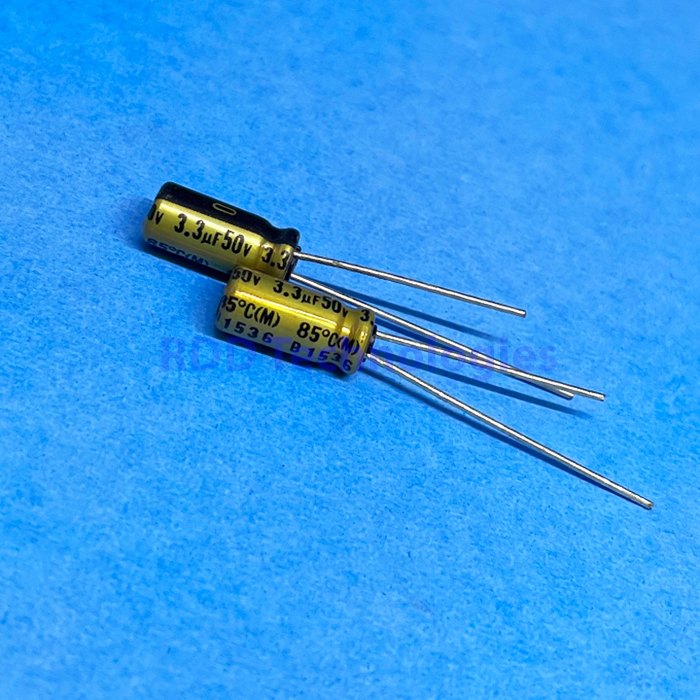

Kapasitor Elektrolit 3.3uF 50V NICHICON MUSE UFG1H3R3MDM 5×11 2LS
Rp5.800
Nichicon MUSE FG Series 3.3uF/50V
Stok habis
| RoHS: | Yes |
| Termination Style: | Radial |
| Capacitance: | 3.3 uF |
| Voltage Rating DC: | 50 VDC |
| Tolerance: | 20 % |
| Ripple Current: | 22 mA |
| Maximum Operating Temperature: | + 85 C |
| Diameter: | 5 mm |
| Length: | 11 mm |
| Lead Spacing: | 2 mm |
| Series: | UFG |
| Life: | 1000 Hour |
| Capacitance – nF: | 3300 nF |
| Dissipation Factor DF: | 0.1 |
| Leakage Current: | 3 uA |
| Unit Weight: | 440 mg |
