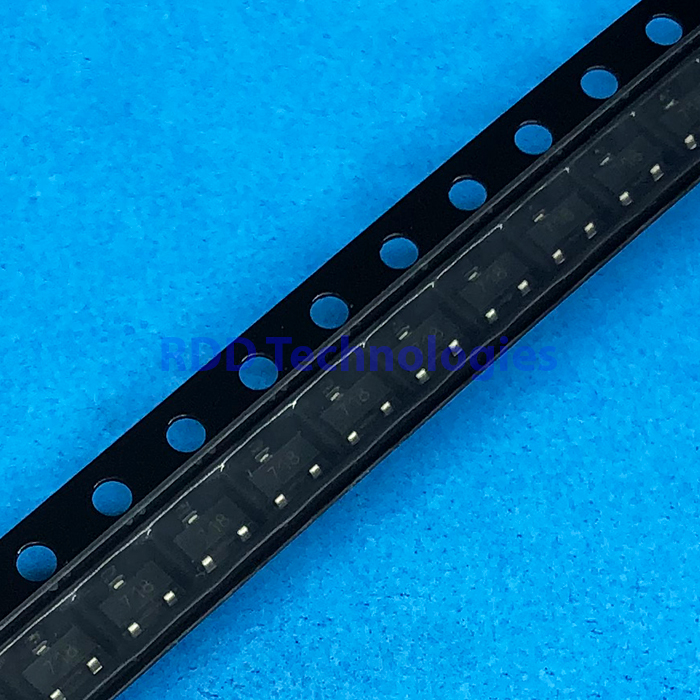

FMMT718TA SOT23

Name: FMMT718TA SOT23 - RDD Technologies
SKU: 3201129-L55.36
Price: 3500 IDR
Availability: InStock

Rp3.500

FMMT718TA
Bipolar Transistors – BJT PNP SuperSOT

Stok 32

SKU: 3201129-L55.36 Kategori: BJT

RoHS:	Yes
Mounting Style:	SMD/SMT
Package / Case:	SOT-23
Transistor Polarity:	PNP
Configuration:	Single
Collector- Emitter Voltage VCEO Max:	– 20 V
Collector- Base Voltage VCBO:	– 20 V
Emitter- Base Voltage VEBO:	5 V
Collector-Emitter Saturation Voltage:	– 145 mV
Maximum DC Collector Current:	1.5 A
Gain Bandwidth Product fT:	180 MHz
Maximum Operating Temperature:	+ 150 C
Continuous Collector Current:	– 1.5 A
DC Collector/Base Gain hfe Min:	300 at 10 mA at 2 V, 300 at 100 mA at 2 V, 150 at 2 A at 2 V, 35 at 4 A at 2 V, 15 at 6 A at 2 V
DC Current Gain hFE Max:	300 at 10 mA at 2 V
Minimum Operating Temperature:	– 55 C
Pd – Power Dissipation:	625 mW
Unit Weight:	8 mg
