| Manufacturer | Zhejiang HKE |
| Packaging | DIP,20.5×9.9mm |
| Coil Voltage | 12V |
| Contact Material | Silver alloy+gold plating |
| Coil Resistance | 720Ω |
| Contact Rating | 1A@120VAC;1A@24VDC;2A@120VAC;2A@24VDC |
| Contact Resistance | 50mΩ |
| Contact Form | Two groups of conversions: 2C(Double-pole double-throw conversion) |
| Release Time | 3ms |
| Operating Temperature | -25℃~+70℃ |
| Operate Time | 7ms |
| Switching Voltage(Max) | 125V@AC;30V@DC |
| Length | 20.5mm |
| Width | 9.9mm |
| Switching Current(Max) | 2A |
| Coil Rated Power | 200mW |

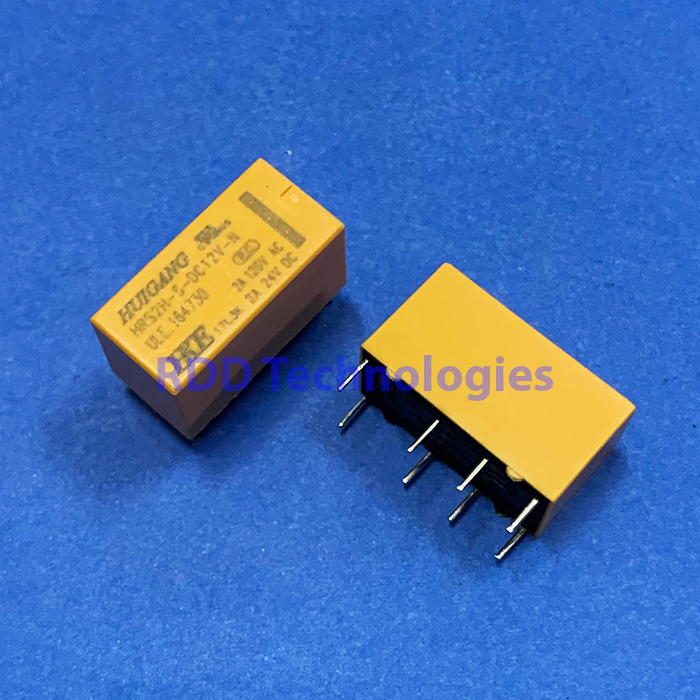

GENERIC RELAY 12V HRS2H-S-DC12V HKE 8PIN
Rp13.300
12V Two groups of conversions: 2C(Double-pole double-throw conversion) 2A DIP,20.5×9.9mm Signal Relays RoHS
367 in stock
