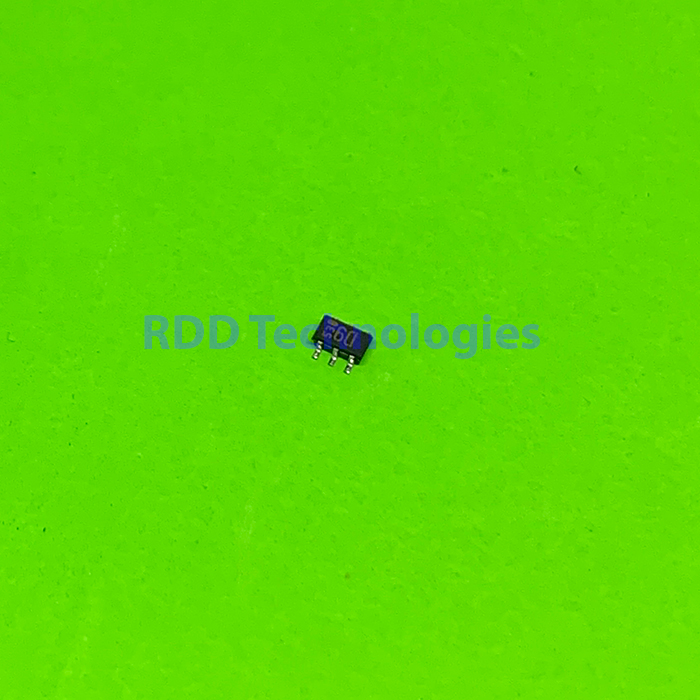

IMD9A ROHM SOT457
Rp12.500
Digital Transistors PNP/NPN 50V 100MA SOT-457
| RoHS: | Yes |
| Configuration: | Dual |
| Transistor Polarity: | NPN, PNP |
| Typical Input Resistor: | 10 kOhms |
| Typical Resistor Ratio: | 4.7 |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOT-457-6 |
| DC Collector/Base Gain hfe Min: | 68 at 5 mA, 5 V, 68 at – 5 mA, – 5 V |
| Maximum Operating Frequency: | 250 MHz |
| Collector- Emitter Voltage VCEO Max: | 300 mV, – 300 mV |
| Continuous Collector Current: | – 100 mA, 100 mA |
| Pd – Power Dissipation: | 300 mW |
| Maximum Operating Temperature: | + 150 C |
| Brand: | ROHM Semiconductor |
| Emitter- Base Voltage VEBO: | 1.4 V, – 1.4 V |
| Output Voltage: | 100 mV, – 100 mV |
| Unit Weight: | 0.001235 oz |
