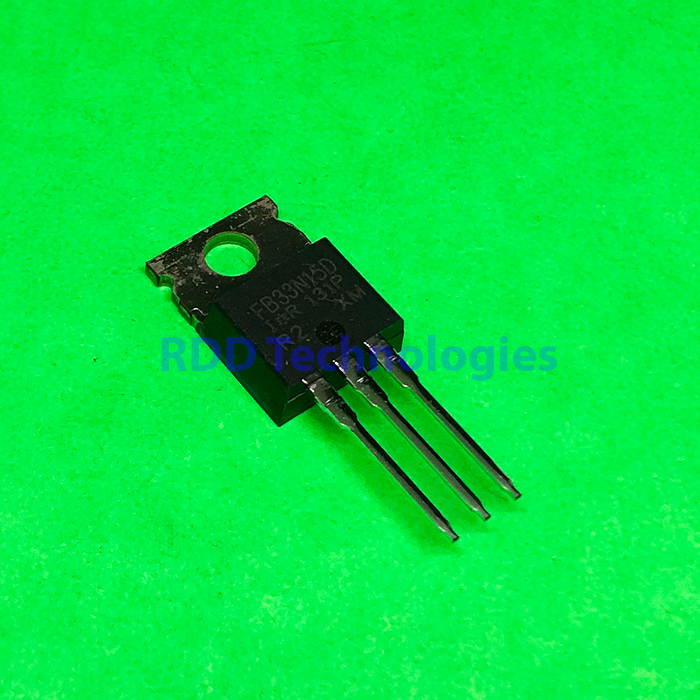

IRFB33N15DPBF IR TO-220AB
Rp35.000
MOSFET N-CH 150V 33A TO-220AB
Stok 4
| RoHS | : | Yes |
| Brand | : | International Rectifier |
| Transistor Polarity | : | N-Channel |
| Vds – Drain-Source Breakdown Voltage | : | 150 V |
| Vgs – Gate-Source Breakdown Voltage | : | 30 V |
| Id – Continuous Drain Current | : | 33 A |
| Rds On – Drain-Source Resistance | : | 56 mOhms |
| Configuration | : | Single |
| Vgs th – Gate-Source Threshold Voltage | : | 5.5 V |
| Qg – Gate Charge | : | 60 nC |
| Maximum Operating Temperature | : | + 175 C |
| Pd – Power Dissipation | : | 3.8 W |
| Mounting Style | : | Through Hole |
| Package / Case | : | TO-220-3 |
| Channel Mode | : | Enhancement |
| Ciss – Input Capacitance | : | 2.02 nF |
| Fall Time | : | 21 ns |
| Forward Transconductance – Min | : | 14 S |
| Minimum Operating Temperature | : | – 55 C |
| Rise Time | : | 38 ns |
| Factory Pack Quantity | : | 50 |
| Typical Turn-Off Delay Time | : | 23 ns |
