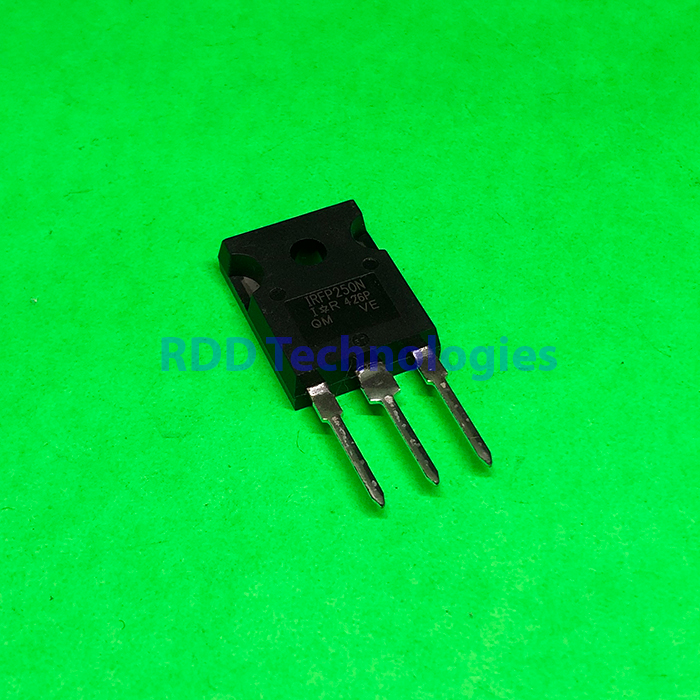

IRFP250NPBF INFINEON TO-3P
Rp22.500
MOSFET N-CH 200V 30A TO-247AC
Out of stock
| RoHS: | Yes |
| Mounting Style: | Through Hole |
| Package / Case: | TO-247-3 |
| Number of Channels: | 1 Channel |
| Transistor Polarity: | N-Channel |
| Vds – Drain-Source Breakdown Voltage: | 200 V |
| Id – Continuous Drain Current: | 30 A |
| Rds On – Drain-Source Resistance: | 75 mOhms |
| Vgs – Gate-Source Voltage: | 20 V |
| Qg – Gate Charge: | 82 nC |
| Maximum Operating Temperature: | + 175 C |
| Channel Mode: | Enhancement |
| Configuration: | Single |
| Fall Time: | 33 ns |
| Forward Transconductance – Min: | 17 S |
| Minimum Operating Temperature: | – 55 C |
| Pd – Power Dissipation: | 214 W |
| Rise Time: | 43 ns |
| Transistor Type: | 1 N-Channel |
| Typical Turn-Off Delay Time: | 41 ns |
| Typical Turn-On Delay Time: | 14 ns |
| Unit Weight: | 38 g |
