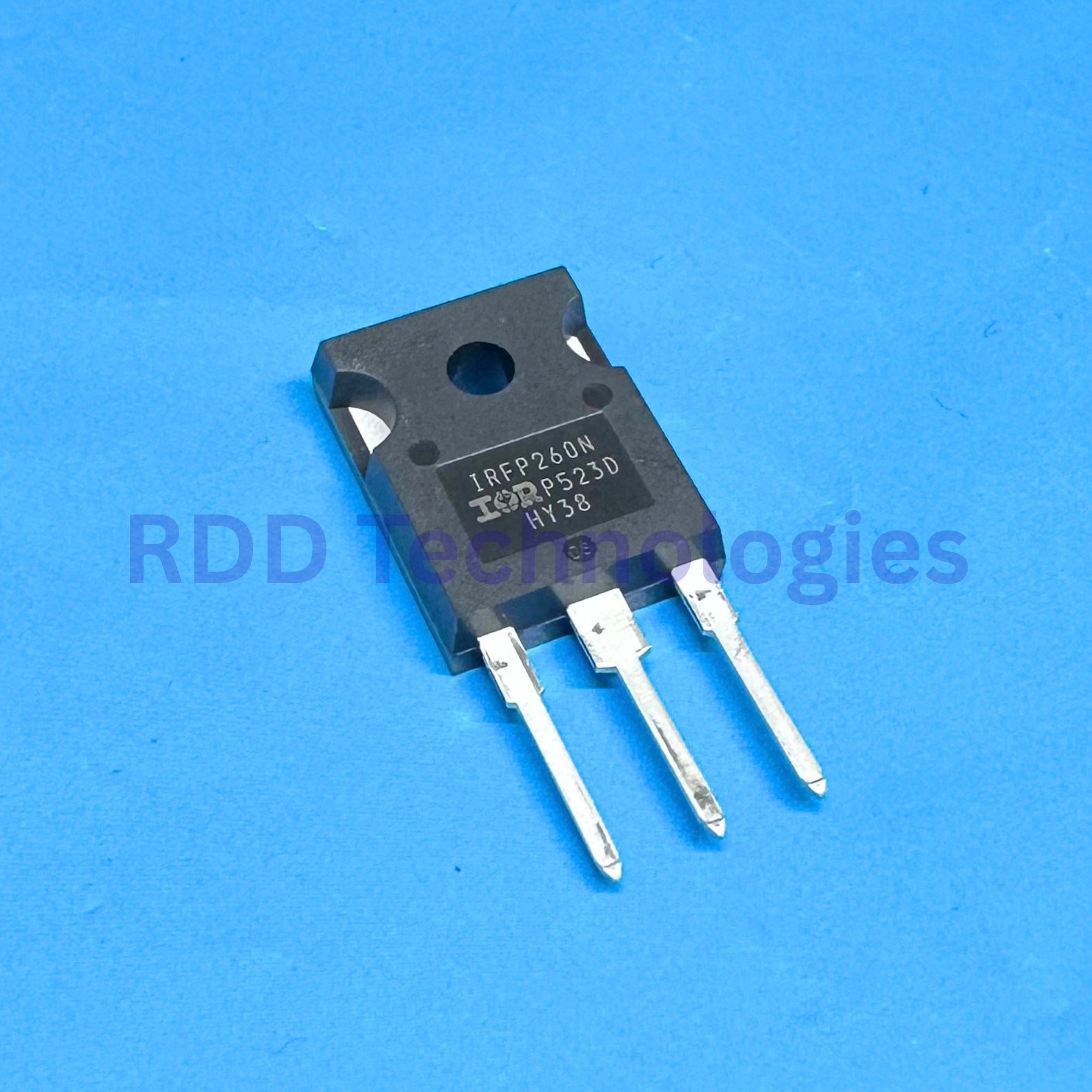

IRFP260NPBF INFINEON TO-247

Rp28.000

MOSFETs MOSFT 200V 49A 40mOhm 156nCAC

Add to Wishlist
Add to Wishlist
SKU: 17855 Kategori:
RoHS: Yes
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-247-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds – Drain-Source Breakdown Voltage: 200 V
Id – Continuous Drain Current: 50 A
Rds On – Drain-Source Resistance: 40 mOhms
Vgs – Gate-Source Voltage: – 20 V, 20 V
Vgs th – Gate-Source Threshold Voltage: 1.8 V
Qg – Gate Charge: 156 nC
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 175 C
Pd – Power Dissipation: 300 W
Channel Mode: Enhancement
Brand: Infineon Technologies
Configuration: Single
Fall Time: 48 ns
Forward Transconductance – Min: 27 S
Rise Time: 60 ns
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 55 ns
Typical Turn-On Delay Time: 17 ns
Unit Weight: 0.211644 oz
