Name: LM5576MHX/NOPB TI HTSSOP-20 - RDD Technologies
SKU: 16471-L60.42
Price: 95000 IDR
Availability: InStock

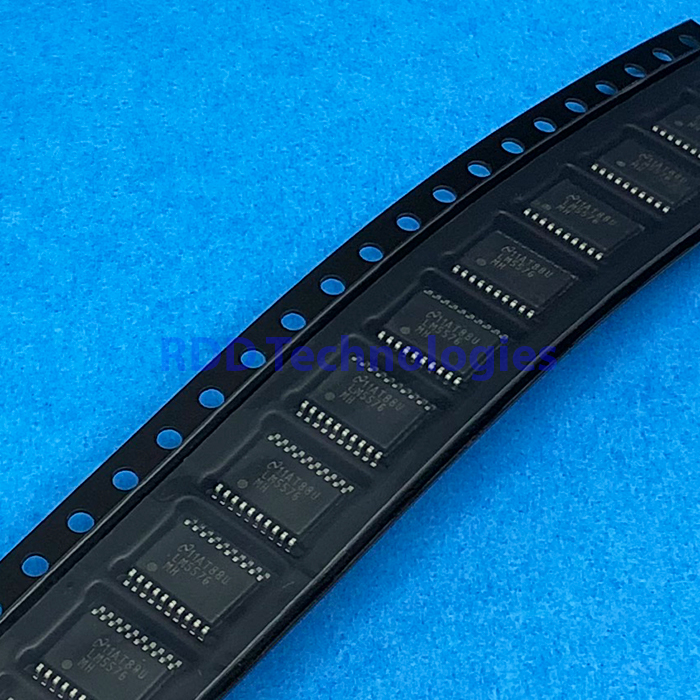

LM5576MHX/NOPB TI HTSSOP-20

Rp95.000

Switching Voltage Regulators 75V 3A SD Switching Reg A 926-LM5576MH/N A 926-LM5576MH/NOPB

Stok 20

Data tambahan dari pemasok
Function	Step-down (buck) switching regulator, integrated 75 V N-channel MOSFET, emulated current-mode control
Input Voltage	6 – 75 V (absolute maximum 76 V)
Output Voltage	Adjustable, from 1,225 V
Output Current	3 A continuous
Switch On-Resistance	170 mΩ typ, 340 mΩ max
Feedback Voltage	1,225 V (1,207 – 1,243 V)
Switching Frequency	50 – 500 kHz, set by one resistor; synchronizable
Bias Current	2 mA typ, 4,5 mA max
Shutdown Current	48 µA typ, 85 µA max
Minimum On-Time	80 ns
Soft-Start	Adjustable by external capacitor (10 µA source)
Thermal Shutdown	165 °C, 25 °C hysteresis
Protection	Cycle-by-cycle current limit, short circuit, thermal shutdown, undervoltage lockout
Operating Temperature	-40 °C – +125 °C (junction)
Thermal Resistance	θJA 40 °C/W
Package / Case	HTSSOP-20 with exposed pad
Mounting Style	Surface Mount
RoHS	Yes

Spesifikasi di atas mengacu datasheet Texas Instruments LM5576, SNVS447K (November 2025). Informasi RoHS berasal dari pemasok.

Arus bias adalah 2 mA tipikal dan 4,5 mA maksimum. Nilai ini berbeda dari arus keluaran yang dapat disuplai ke beban.

Untuk memastikan kode komponen yang tersedia sebelum membeli, silakan hubungi kami.

Sumber: Texas Instruments (ti.com).
