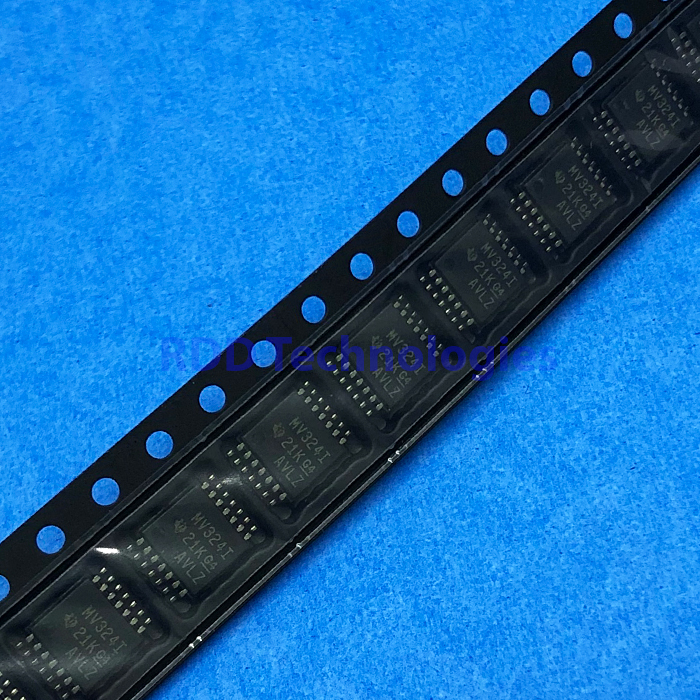

LMV324IPWR TI TSSOP-14

Name: LMV324IPWR TI TSSOP-14 - RDD Technologies
SKU: 16514-L15.22A
Price: 12000 IDR
Availability: InStock

Rp12.000

Operational Amplifiers – Op Amps Quad Lw V R/R

Stok 160

SKU: 16514-L15.22A Kategori: Op Amp IC

RoHS:	Yes
Number of Channels:	4 Channel
GBP – Gain Bandwidth Product:	1 MHz
SR – Slew Rate:	1 V/us
Vos – Input Offset Voltage:	7 mV
Ib – Input Bias Current:	250 nA
Supply Voltage – Max:	5.5 V
Supply Voltage – Min:	2.7 V
Operating Supply Current:	410 uA
Output Current per Channel:	40 mA
CMRR – Common Mode Rejection Ratio:	65 dB
en – Input Voltage Noise Density:	39 nV/sqrt Hz
Package/Case:	TSSOP-14
Mounting Style:	SMD/SMT
Shutdown:	No Shutdown
Minimum Operating Temperature:	– 40 C
Maximum Operating Temperature:	+ 125 C
Amplifier Type:	Low Voltage Amplifier
Brand:	Texas Instruments
In – Input Noise Current Density:	210 fA
Input Type:	Rail-to-Rail
Moisture Sensitive:	Yes
Output Type:	Rail-to-Rail
Technology:	BiCMOS
Unit Weight:	57,200 mg

LMV324IPWR TI TSSOP-14

Stok 160
