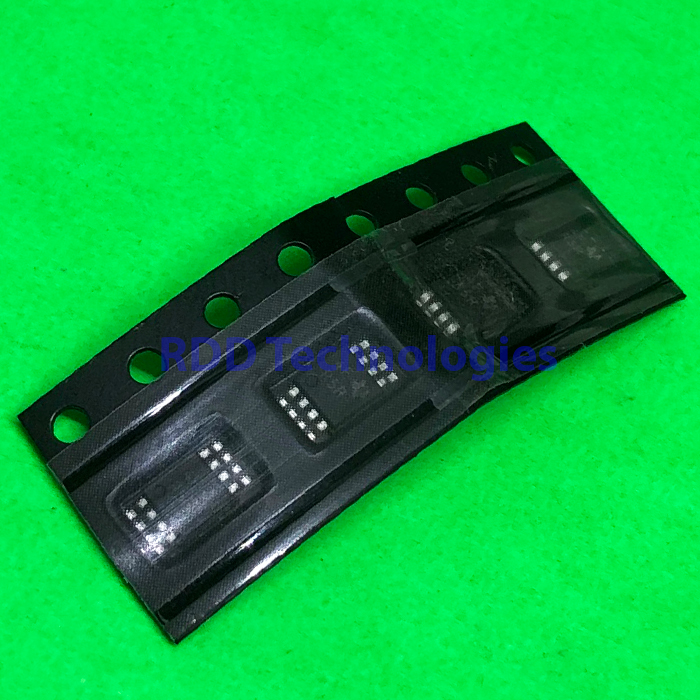

LMV358IDGKR TI MSOP8
Rp12.000
Operational Amplifiers – Op Amps Dual Lw V R/R Op Amp
Stok 3
| RoHS: | Yes |
| Amplifier Type: | Low Voltage Amplifier |
| Mounting Style: | SMD/SMT |
| Package / Case: | VSSOP-8 |
| Supply Voltage – Max: | 5.5 V |
| Output Current per Channel: | 160 mA |
| Number of Channels: | 2 Channel |
| GBP – Gain Bandwidth Product: | 1 MHz |
| SR – Slew Rate: | 1 V/us |
| CMRR – Common Mode Rejection Ratio: | 50 dB |
| Ib – Input Bias Current: | 250 nA |
| Vos – Input Offset Voltage: | 7 mV |
| Supply Voltage – Min: | 2.7 V |
| Operating Supply Current: | 440 uA |
| Maximum Operating Temperature: | + 85 C |
| Minimum Operating Temperature: | – 40 C |
| Shutdown: | No Shutdown |
| en – Input Voltage Noise Density: | 39 nV/sqrt Hz |
| In – Input Noise Current Density: | 0.21 pA/sqrt Hz |
| Output Type: | Rail to Rail |
| Technology: | BiCMOS |
| Vcm – Common Mode Voltage: | Negative Rail to Positive Rail – 1 V |
| Unit Weight: | 19 mg |
