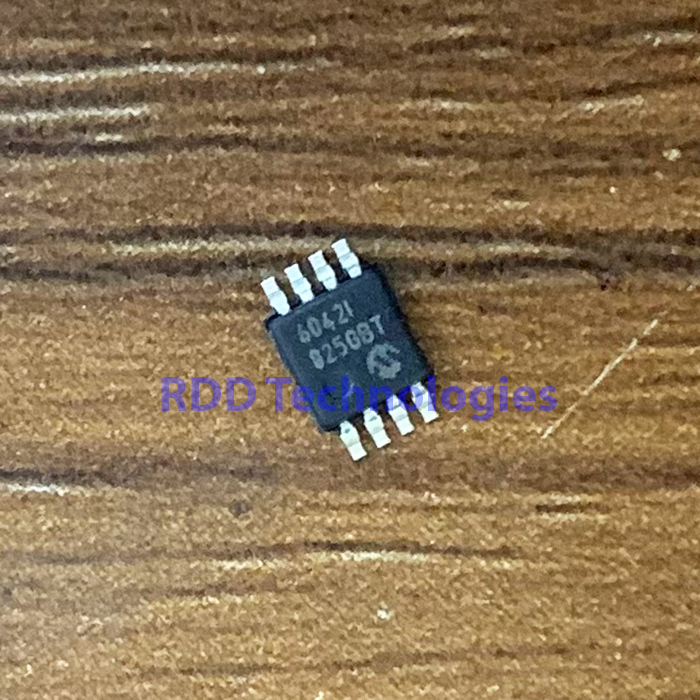

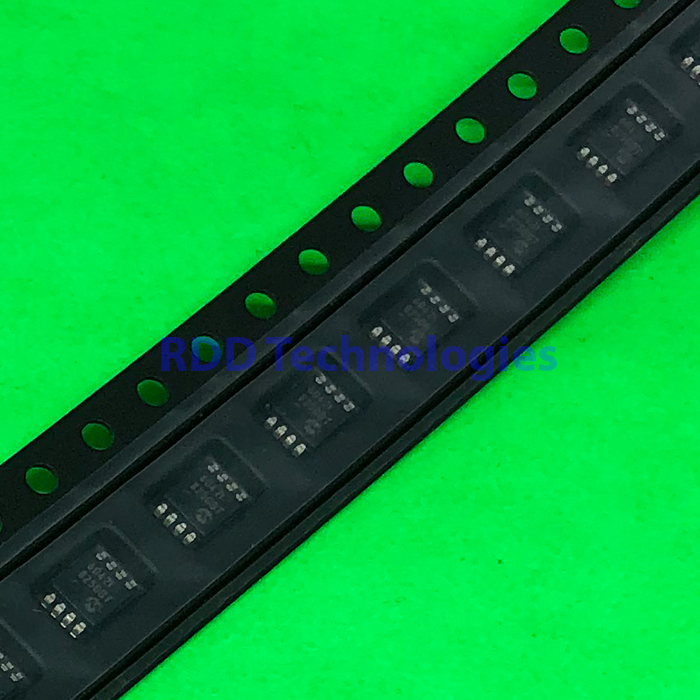

MCP6042T-I/MS MICROCHIP MSOP8
Rp22.500
Operational Amplifiers – Op Amps Dual 1.6V 10KHz
Stok 54
| RoHS: | Yes |
| Number of Channels: | 2 Channel |
| GBP – Gain Bandwidth Product: | 14 kHz |
| SR – Slew Rate: | 3 V/us |
| Vos – Input Offset Voltage: | 3 mV |
| Ib – Input Bias Current: | 1 pA |
| Supply Voltage – Max: | 5.5 V |
| Supply Voltage – Min: | 1.4 V |
| Operating Supply Current: | 600 nA |
| Output Current per Channel: | 30 mA |
| CMRR – Common Mode Rejection Ratio: | 80 dB |
| en – Input Voltage Noise Density: | 170 nV/sqrt Hz |
| Package / Case: | MSOP-8 |
| Mounting Style: | SMD/SMT |
| Shutdown: | No Shutdown |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 85 C |
| Brand: | Microchip Technology |
| In – Input Noise Current Density: | 0.0006 pA |
| Input Type: | Rail-to-Rail |
| Moisture Sensitive: | Yes |
| PSRR – Power Supply Rejection Ratio: | 70 dB |
| Unit Weight: | 0.004938 oz |
