Name: MIC29302WT MICREL TO-220-5 - RDD Technologies
Brand: MICREL
SKU: 3401014-L13.31A
Price: 40000 IDR
Availability: InStock

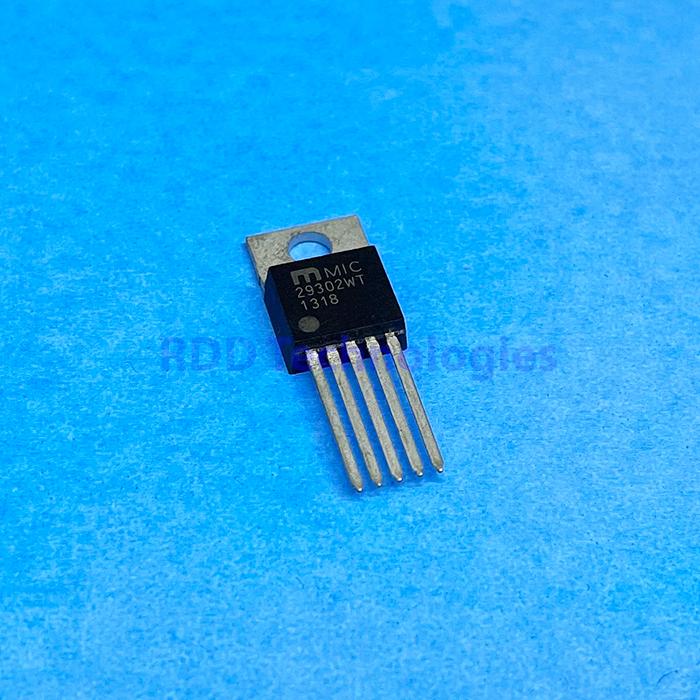

MIC29302WT MICREL TO-220-5

Rp40.000

MIC29302WT
LDO Voltage Regulators 3.0A LDO Adj. + Shutdown

Stok 10

SKU: 3401014-L13.31A Kategori: Power Management IC Brand: MICREL

Part Number	:	MIC29302WT
Brand	:	Texas Instruments
RoHS	:	Yes
Input Voltage MAX	:	26 V
Output Voltage	:	Adjustable
Dropout Voltage – Max	:	600 mV
Output Current	:	3 A
Load Regulation	:	0.20%
Number of Outputs	:	1 Output
Maximum Operating Temperature	:	+ 125 C
Mounting Style	:	Through Hole
Package / Case	:	TO-220-5
Input Bias Current – Max	:	120 nA
Line Regulation	:	0.06%
Maximum Power Dissipation	:	Internally Limited
Minimum Operating Temperature	:	– 40 C
Reference Voltage	:	1.24 V
Voltage Regulation Accuracy	:	1%
