Name: MJ2955 ST TO-3 - RDD Technologies
Brand: ST MICROELECTRONICS
SKU: 3201059-L14.04
Price: 25000 IDR
Availability: InStock

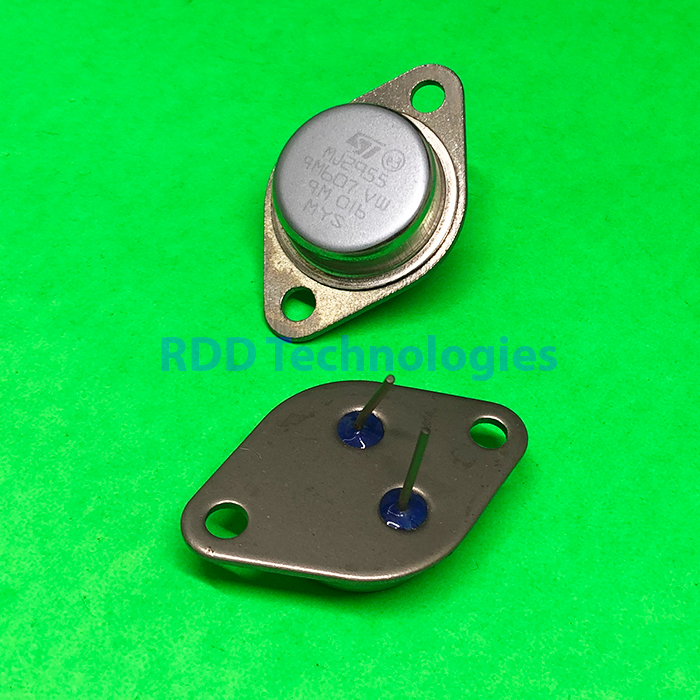

MJ2955 ST TO-3

Rp25.000

MJ2955
The devices are manufactured in planar technology with “base island” layout and are suitable for audio, power linear and switching applications.

Features:
• Low collector-emitter saturation voltage
• Complementary NPN – PNP transistors
Applications:
• General purpose
• Audio amplifier

Stok 13

SKU: 3201059-L14.04 Kategori: BJT Brand: ST MICROELECTRONICS

RoHS	:	–
Brand	:	STMicroelectronics
Configuration	:	Single
Transistor Polarity	:	PNP
Collector- Base Voltage VCBO	:	100 V
Collector- Emitter Voltage VCEO Max	:	60 V
Emitter- Base Voltage VEBO	:	7 V
Collector-Emitter Saturation Voltage	:	1 V
Maximum DC Collector Current	:	15 A
Gain Bandwidth Product fT	:	3 MHz
Maximum Operating Temperature	:	+ 200 C
Mounting Style	:	Through Hole
Package / Case	:	TO-3
Continuous Collector Current	:	15 A
DC Collector/Base Gain hfe Min	:	20
DC Current Gain hFE Max	:	70
Maximum Power Dissipation	:	115 W
Minimum Operating Temperature	:	– 65 C
