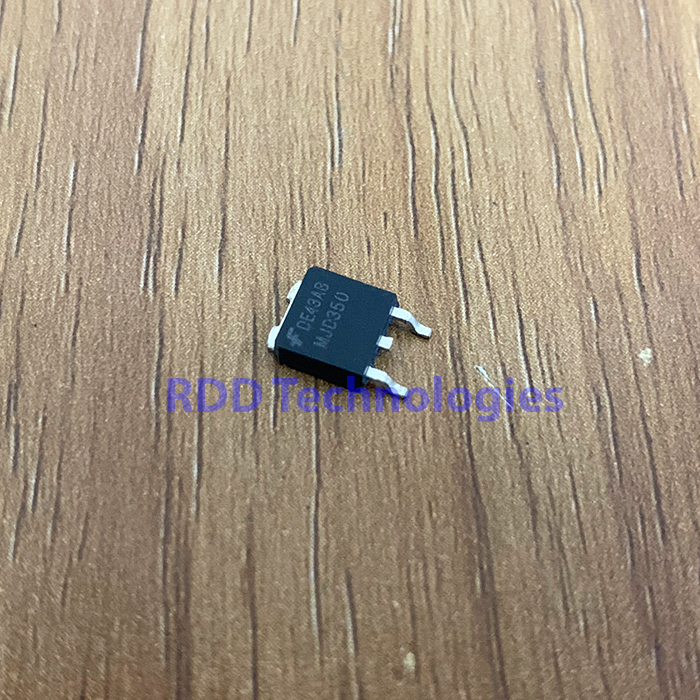

MJD350T4G ON TO-252-3
Rp15.000
Bipolar Transistors – BJT 0.5A 300V 15W PNP
| RoHS: | Yes |
| Technology: | Si |
| Mounting Style: | SMD/SMT |
| Package / Case: | TO-252-3 |
| Transistor Polarity: | PNP |
| Configuration: | Single |
| Maximum DC Collector Current: | 500 mA |
| Collector- Emitter Voltage VCEO Max: | 300 V |
| Collector- Base Voltage VCBO: | 300 V |
| Emitter- Base Voltage VEBO: | 3 V |
| Collector-Emitter Saturation Voltage: | 1 V |
| Pd – Power Dissipation: | 15 W |
| Gain Bandwidth Product fT: | 10 MHz |
| Minimum Operating Temperature: | – 65 C |
| Maximum Operating Temperature: | + 150 C |
| Brand: | onsemi |
| Continuous Collector Current: | 500 mA |
| DC Collector/Base Gain hfe Min: | 30 |
| Unit Weight: | 0.012381 oz |
