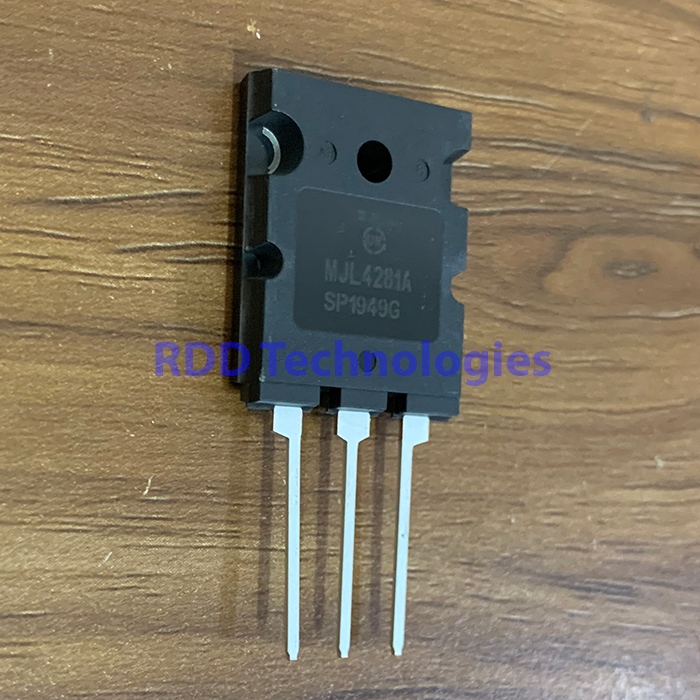

MJL4281AG ON TO-264 RESMI
Rp175.000
Bipolar Transistors – BJT 15A 350V 230W NPN
| RoHS: | Yes |
| Technology: | Si |
| Mounting Style: | Through Hole |
| Package / Case: | TO-264-3 |
| Transistor Polarity: | NPN |
| Configuration: | Single |
| Maximum DC Collector Current: | 15 A |
| Collector- Emitter Voltage VCEO Max: | 350 V |
| Collector- Base Voltage VCBO: | 350 V |
| Emitter- Base Voltage VEBO: | 5 V |
| Collector-Emitter Saturation Voltage: | 1 V |
| Pd – Power Dissipation: | 230 W |
| Gain Bandwidth Product fT: | 35 MHz |
| Minimum Operating Temperature: | – 65 C |
| Maximum Operating Temperature: | + 150 C |
| Brand: | onsemi |
| Continuous Collector Current: | 15 A |
| DC Collector/Base Gain hfe Min: | 80 |
| Unit Weight: | 0.342157 oz |
