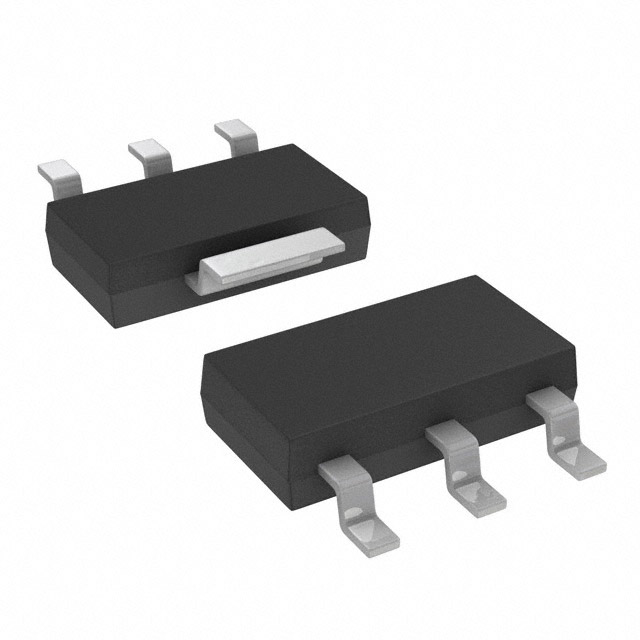

MOSFET BSP129H6327XTSA1 INFINEON SOT-223

Rp15.800

MOSFETs N-Ch 240V 350mA SOT-223-3

Add to Wishlist
Add to Wishlist

Stok habis

SKU: 36101030 Kategori:
RoHS: Yes
Technology: Si
Mounting Style: SMD/SMT
Package / Case: SOT-223-4
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds – Drain-Source Breakdown Voltage: 240 V
Id – Continuous Drain Current: 350 mA
Rds On – Drain-Source Resistance: 6.5 Ohms
Vgs – Gate-Source Voltage: – 20 V, 20 V
Vgs th – Gate-Source Threshold Voltage: 1.4 V
Qg – Gate Charge: 3.8 nC
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 150 C
Pd – Power Dissipation: 1.8 W
Channel Mode: Depletion
Qualification: AEC-Q101
Brand: Infineon Technologies
Configuration: Single
Fall Time: 35 ns
Forward Transconductance – Min: 180 mS
Product Type: MOSFETs
Rise Time: 4.1 ns
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 22 ns
Typical Turn-On Delay Time: 4.4 ns
Unit Weight: 0.003951 oz
