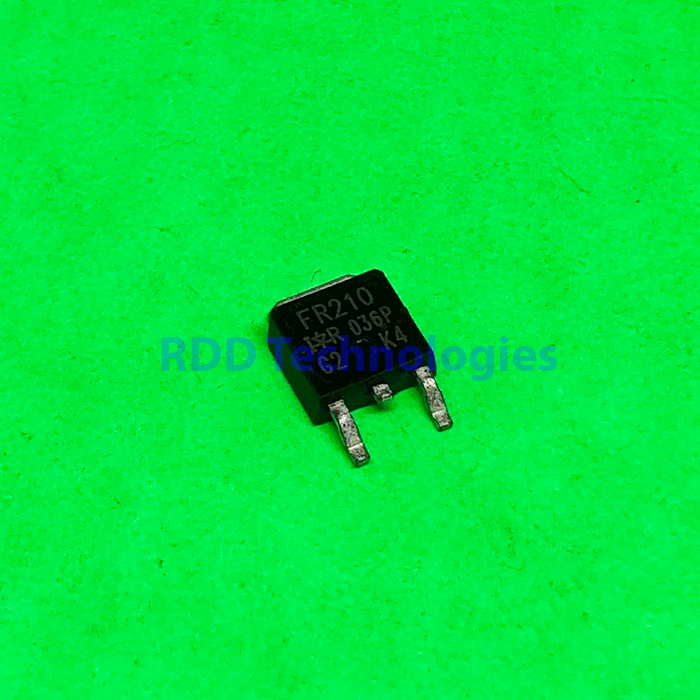

MOSFET IRFR210TRPBF IR TO-252
Rp3.500
MOSFETs 200V Vds, 20V Vgs DPAK (TO-252)
Out of stock
| Part Number | : | IRFR210TRPBF |
| Brand | : | IR |
| RoHS | : | Yes |
| FET Type | : | MOSFET N-Channel, Metal Oxide |
| FET Feature | : | Standard |
| Drain to Source Voltage (Vdss) | : | 200V |
| Current – Continuous Drain (Id) @ 25DEGC | : | 2.6A |
| Rds On (Max) @ Id, Vgs | : | 1.5 Ohm @ 1.6A, 10V |
| Vgs(th) (Max) @ Id | : | 4V @ 250uA |
| Gate Charge (Qg) @ Vgs | : | 8.2nC @ 10V |
| Input Capacitance (Ciss) @ Vds | : | 140pF @ 25V |
| Power – Max | : | 2.5W |
| Mounting Type | : | Surface Mount |
| Package / Case | : | TO-252-3 |
