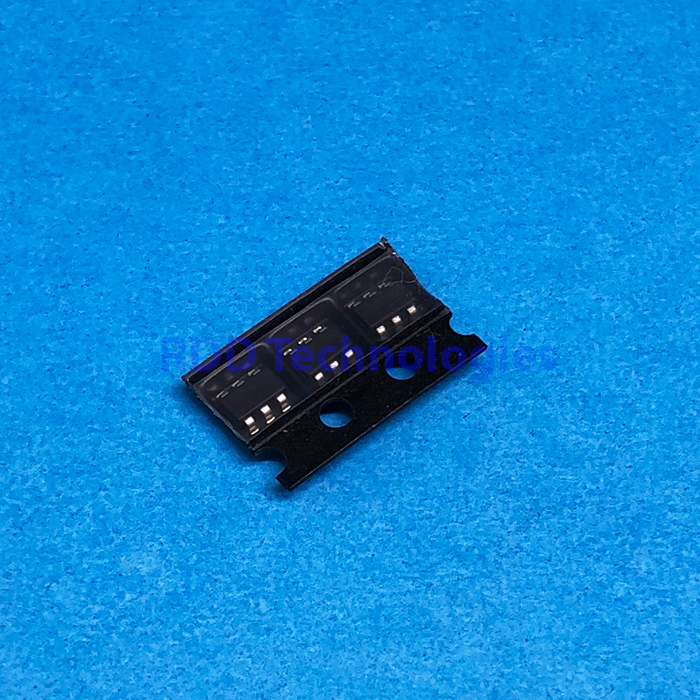

MOSFET N CH. FDC645N SuperSOT 6Pin FSC
Rp37.500
MOSFETs SSOT-6 N-CH
Stok 4
| RoHS: | Yes |
| Technology: | Si |
| Mounting Style: | SMD/SMT |
| Package / Case: | SSOT-6 |
| Transistor Polarity: | N-Channel |
| Number of Channels: | 1 Channel |
| Vds – Drain-Source Breakdown Voltage: | 30 V |
| Id – Continuous Drain Current: | 5.5 A |
| Rds On – Drain-Source Resistance: | 30 mOhms |
| Vgs – Gate-Source Voltage: | – 12 V, 12 V |
| Vgs th – Gate-Source Threshold Voltage: | 800 mV |
| Qg – Gate Charge: | 21 nC |
| Minimum Operating Temperature: | – 55 C |
| Maximum Operating Temperature: | + 150 C |
| Pd – Power Dissipation: | 1.6 W |
| Brand: | onsemi |
| Configuration: | Single |
| Fall Time: | 9 ns |
| Forward Transconductance – Min: | 33 S |
| Rise Time: | 9 ns |
| Transistor Type: | 1 N-Channel |
| Typical Turn-Off Delay Time: | 35 ns |
| Typical Turn-On Delay Time: | 8 ns |
| Unit Weight: | 0.001270 oz |
