MOSFET Power Controller
Rp75.000

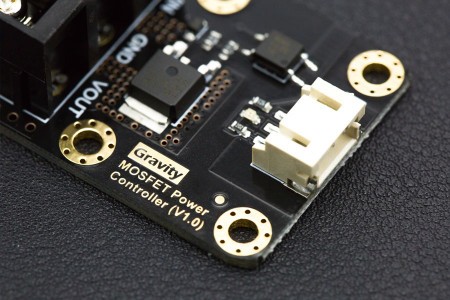

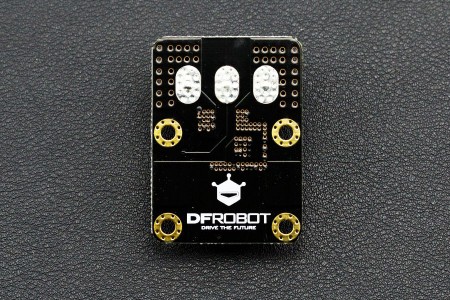

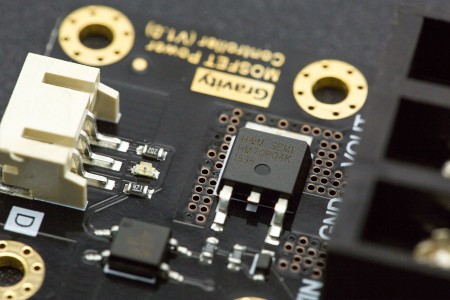

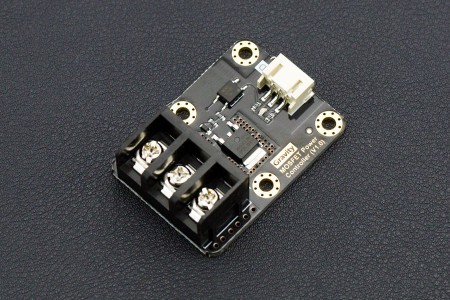

DFRobot Accessories Gravity MOSFET Power Controller
Stok 4
Specification
- VIN Operating Voltage: 5V-36V DC
- VIN Operating Current: 0A-20A (Suggest external heat sink when the current over 10A )
- Logic Operating Voltage: 3.3~10V DC
- Logic Control Signal: 3.3~10V DC
- Switching Frequency: 0-1KHz
- Switching Character: T(on)=20us/T(off)=50us
- Operating Temperature: -55℃-155℃
- Interface Type: PH2.0-3P
- Dimension: 44*32 mm/ 1.73*1.26 inches
