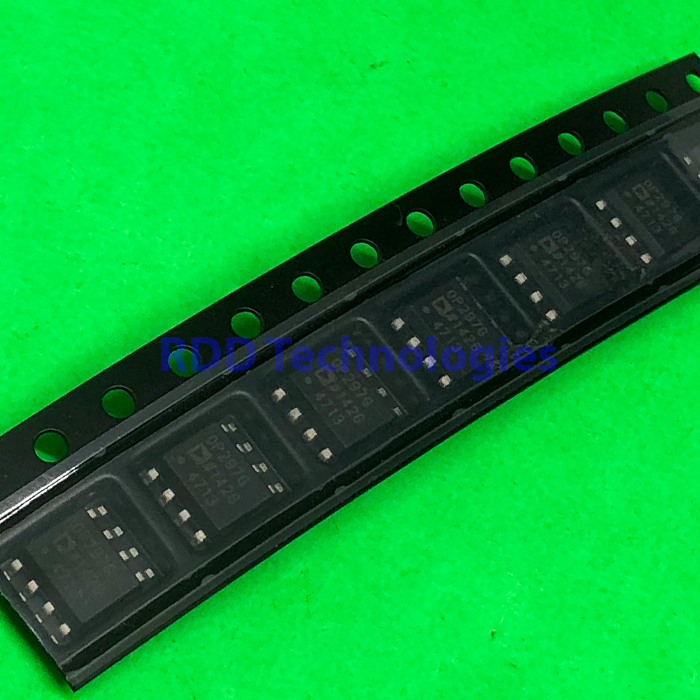

OP297GSZ ANALOG DEVICES 8SOIC
Rp103.500
OP297GSZ
Precision Amplifiers Dual Lo Bias Current PREC IC 50uV Max
Stok 7
| RoHS: | Yes |
| Brand: | Analog Devices |
| Number of Channels: | 2 Channel |
| GBP – Gain Bandwidth Product: | 500 kHz |
| SR – Slew Rate: | 0.15 V/us |
| CMRR – Common Mode Rejection Ratio: | 135 dB |
| Ib – Input Bias Current: | 200 pA |
| Vos – Input Offset Voltage: | 80 uV |
| Supply Voltage – Max: | 20 V |
| Supply Voltage – Min: | 2 V |
| Supply Current per Channel: | 525 uA |
| Maximum Operating Temperature: | + 85 C |
| Minimum Operating Temperature: | – 40 C |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOIC-8 |
| Dual Supply Voltage: | +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V |
| en – Input Voltage Noise Density: | 20 nV/rtHz at +/- 15 V |
| Input Voltage Range – Max: | 14 V |
| Maximum Dual Supply Voltage: | +/- 20 V |
| Minimum Dual Supply Voltage: | +/- 2 V |
| PSRR – Power Supply Rejection Ratio: | 125 dB |
| Supply Type: | Dual |
| Voltage Gain dB: | 130.1 dB |
