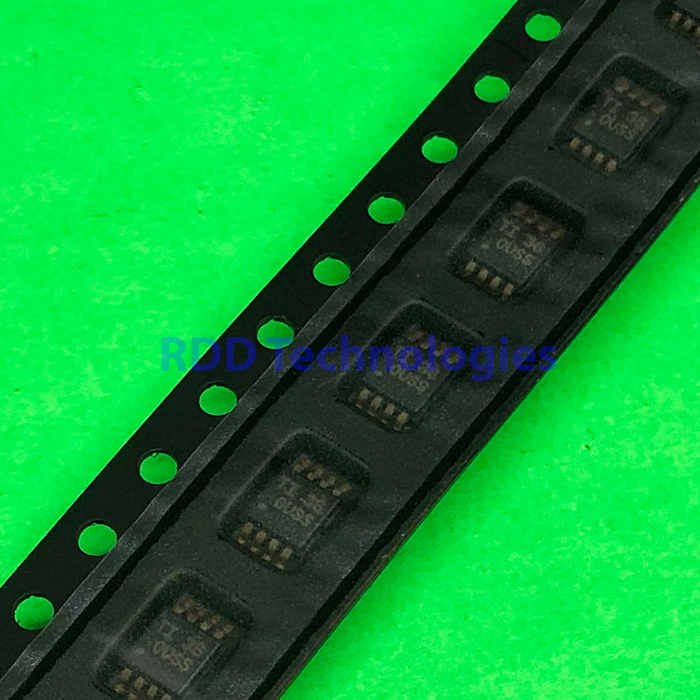

OPA2313IDGKR TI MSOP8
Rp16.000
Operational Amplifiers – Op Amps 1MHz Micpwr Lw-Noise RRI/O 1.8-V Op Amp A 595-OPA2313IDGK
Stok 35
| RoHS: | Yes |
| Mounting Style: | SMD/SMT |
| Package / Case: | VSSOP-8 |
| Supply Voltage – Max: | 5.5 V |
| Output Current per Channel: | 15 mA |
| Number of Channels: | 2 Channel |
| GBP – Gain Bandwidth Product: | 1 MHz |
| SR – Slew Rate: | 0.5 V/us |
| CMRR – Common Mode Rejection Ratio: | 70 dB |
| Ib – Input Bias Current: | 10 pA |
| Vos – Input Offset Voltage: | 2.5 mV |
| Supply Voltage – Min: | 1.8 V |
| Operating Supply Current: | 50 uA |
| Maximum Operating Temperature: | + 125 C |
| Minimum Operating Temperature: | – 40 C |
| Shutdown: | No Shutdown |
| Amplifier Type: | General Purpose Amplifier |
| en – Input Voltage Noise Density: | 25 nV/sqrt Hz |
| In – Input Noise Current Density: | 5 fA/sqrt Hz |
| Input Type: | Rail to Rail |
| Ios – Input Offset Current: | 10 pA |
| Operating Supply Voltage: | 1.8 V to 5.5 V |
| Output Type: | Rail to Rail |
| PSRR – Power Supply Rejection Ratio: | 90 dB |
| Supply Type: | Single |
| Technology: | CMOS |
| THD plus Noise: | 0.00% |
| Voltage Gain dB: | 110 dB |
