| RoHS: | Yes |
| Number of Channels: | 1 Channel |
| GBP – Gain Bandwidth Product: | 5.5 MHz |
| SR – Slew Rate: | 2 V/us |
| Vos – Input Offset Voltage: | 5 uV |
| Ib – Input Bias Current: | 200 fA |
| Supply Voltage – Max: | 5.5 V |
| Supply Voltage – Min: | 2.2 V |
| Operating Supply Current: | 760 uA |
| Output Current per Channel: | 50 mA |
| CMRR – Common Mode Rejection Ratio: | 90 dB |
| en – Input Voltage Noise Density: | 7.5 nV/sqrt Hz |
| Package / Case: | SC-70-5 |
| Mounting Style: | SMD/SMT |
| Shutdown: | No Shutdown |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 125 C |
| Amplifier Type: | Low Noise Amplifier |
| Brand: | Texas Instruments |
| In – Input Noise Current Density: | 2 fA |
| Input Type: | Rail-to-Rail |
| Moisture Sensitive: | Yes |
| Output Type: | Rail-to-Rail |
| PSRR – Power Supply Rejection Ratio: | 106.02 dB |
| Technology: | CMOS |
| Voltage Gain dB: | 134 dB |
| Unit Weight: | 0.000705 oz |

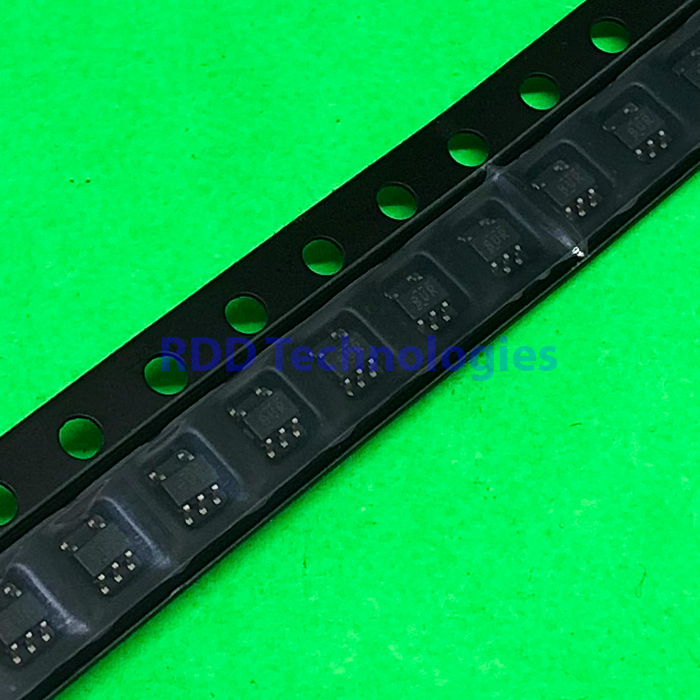

OPA376AIDCKR TI SC-70
Rp29.000
Precision Amplifiers Prec Low Noise Low I q Op Amp A 595-OPA3 A 595-OPA376AIDCKT
Stok 43
SKU: 15101229-L31.19
Kategori: Uncategorized
