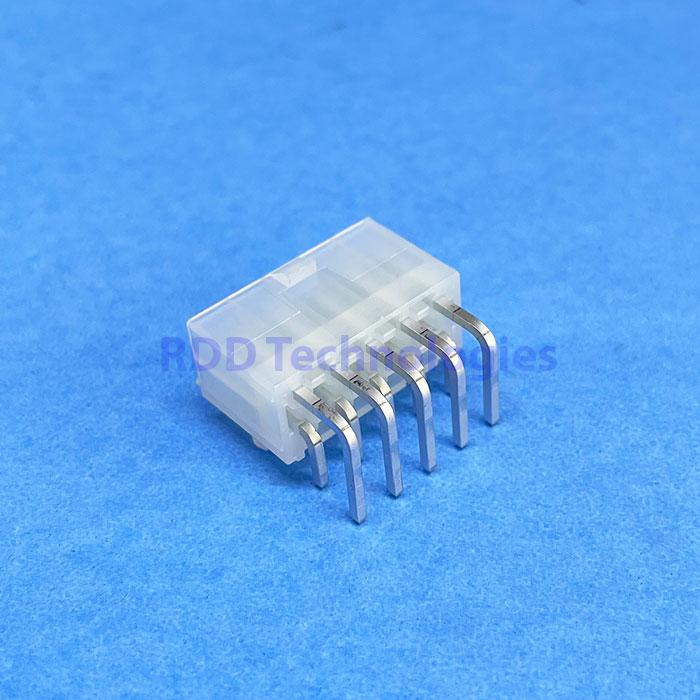

ORIGINAL CONN. MOLEX 5569-2x5AW 90 DEGREE 39301100 (FOR PCB)
Rp16.000
Headers & Wire Housings 10 CKT R/A HEADER
| RoHS: | Yes |
| Type: | Power |
| Number of Positions: | 10 Position |
| Pitch: | 4.2 mm (0.165 in) |
| Number of Rows: | 2 Row |
| Row Spacing: | 4.2 mm (0.165 in) |
| Mounting Style: | Through Hole |
| Termination Style: | Solder Pin |
| Mounting Angle: | Right Angle |
| Contact Gender: | Pin (Male) |
| Contact Plating: | Tin |
| Application: | Wire-to-Board, Power |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 105 C |
| Brand: | Molex |
| Contact Material: | Brass |
| Current Rating: | 13 A |
| Flammability Rating: | UL 94 V-2 |
| Housing Color: | Natural |
| Housing Material: | Nylon |
| Voltage Rating: | 600 VAC/DC |
| Unit Weight: | 0.130514 oz |
