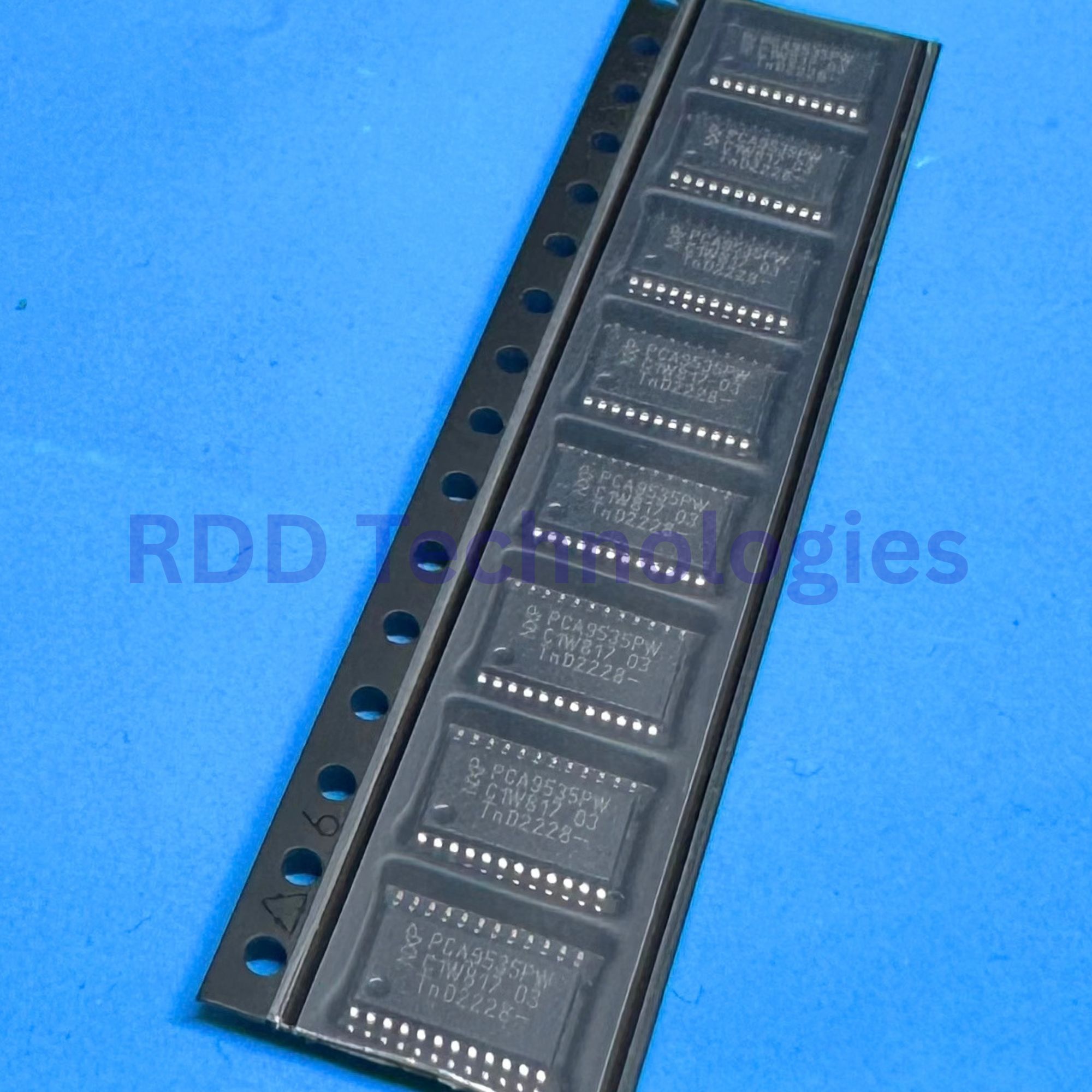

PCA9535PW,118 NXP TSSOP-24
Rp40.000
Interface – I/O Expanders 16-BIT I2C FM TP GPIO INT
| RoHS: | Yes |
| Mounting Style: | SMD/SMT |
| Package / Case: | TSSOP-24 |
| Interface Type: | I2C, Serial, SMBus |
| Number of I/Os: | 16 I/O |
| Interrupt Output: | With Interrupt |
| Supply Voltage – Min: | 2.3 V |
| Supply Voltage – Max: | 5.5 V |
| Maximum Clock Frequency: | 400 kHz |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 85 C |
| ESD Protection: | 2 kV |
| Brand: | NXP Semiconductors |
| Logic Family: | PCA9535 |
| Operating Supply Current: | 135 uA |
| Operating Supply Voltage: | 2.3 V to 5.5 V |
| Output Current: | 50 mA |
| Output Type: | Open Drain |
| Pd – Power Dissipation: | 200 mW |
| Unit Weight: | 0.006420 oz |
