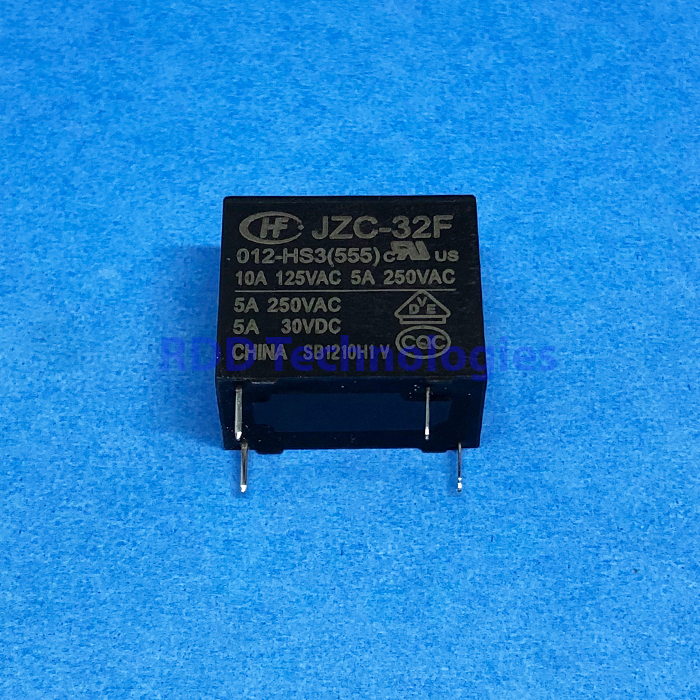

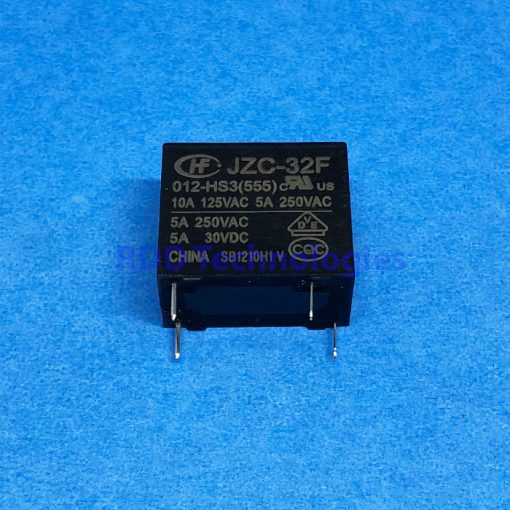

RELAY 12V 1A HONGFA JZC-32F/012-HS3(555)

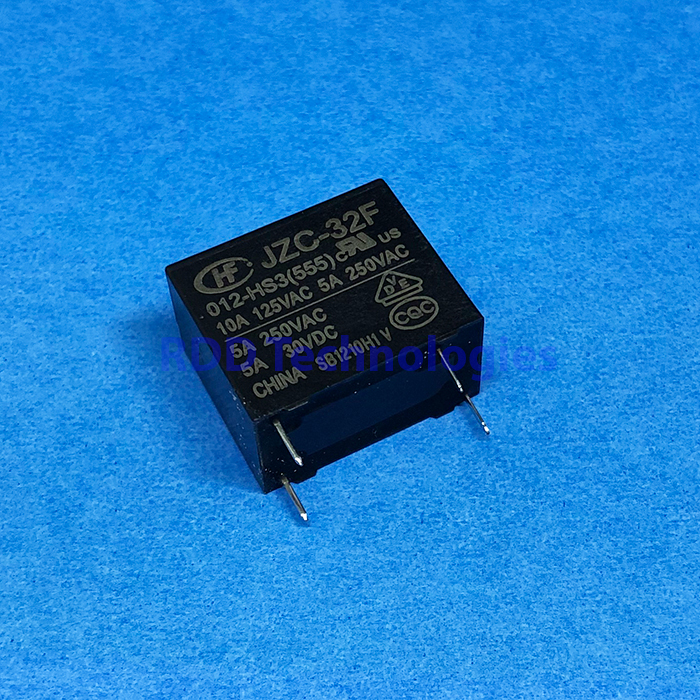

RELAY 12V 1A HONGFA JZC-32F/012-HS3(555) - Gambar 2
RELAY 12V 1A HONGFA JZC-32F/012-HS3(555)
RELAY 12V 1A HONGFA JZC-32F/012-HS3(555) - Gambar 2

RELAY 12V 1A HONGFA JZC-32F/012-HS3(555)

Rp15.000

RELAY POWER SPST-NO 10A 12V

Add to Wishlist
Add to Wishlist

Stok habis

SKU: 16855 Kategori:
Manufacturer HONGFA
Packaging Through Hole,18.4×10.2mm
Contact Material AgNi
Coil Type Non-Polarized – Single Coil
Coil Voltage 12V
Number of Pins 4
Operating Temperature -40℃~+70℃
Switching Current(Max) 10A
Release Time 5ms
Operate Time 8ms
Contact Resistance 100mΩ
Contact Rating 10A@125VAC;5A@250VAC;5A@30VDC
Length 18.4mm
Coil Rated Power 450mW
Switching Voltage(Max) 250V@AC;30V@DC
Width 10.2mm
Contact Form 1 Set Normally Open: 1A (SPST NO)
Coil Resistance 320Ω
RELAY 12V 1A HONGFA JZC-32F/012-HS3(555)
RELAY 12V 1A HONGFA JZC-32F/012-HS3(555)

Stok habis
