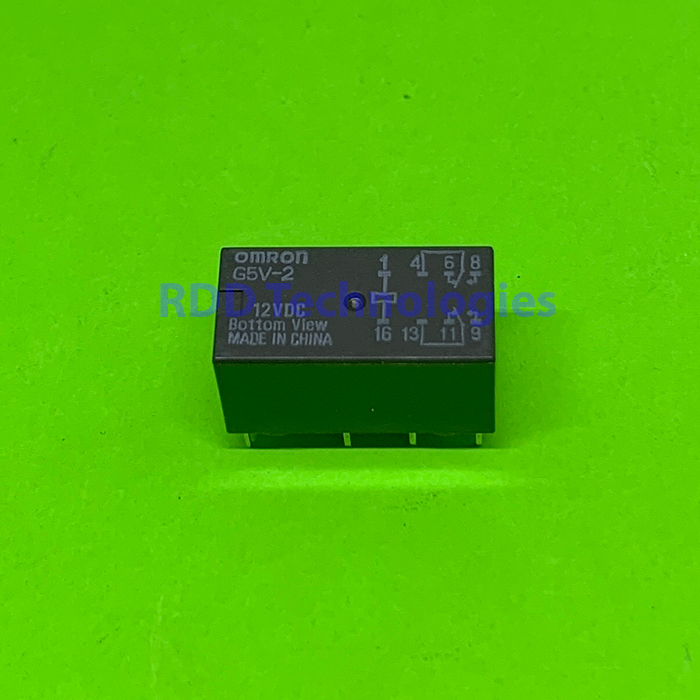

RELAY 12V DC OMRON G5V-2-DC12
Rp32.500
Low Signal Relay
90 in stock
| Manufacturer | OMRON |
| Packaging | DIP,20.3×9.9mm |
| Contact Material | Silver + Gold Plated |
| Coil Voltage | 12V |
| Coil Resistance | 288Ω |
| Contact Rating | 500mA@125VAC;2A@30VDC |
| Contact Resistance | 50mΩ |
| Contact Form | Two groups of conversions: 2C(Double-pole double-throw conversion) |
| Release Time | 3ms |
| Operate Time | 7ms |
| Operating Temperature | -25℃~+65℃ |
| Switching Voltage(Max) | 125V@AC;125V@DC |
| Length | 20.3mm |
| Width | 9.9mm |
| Switching Current(Max) | 2A |
| Brand | OMRON |
|---|
