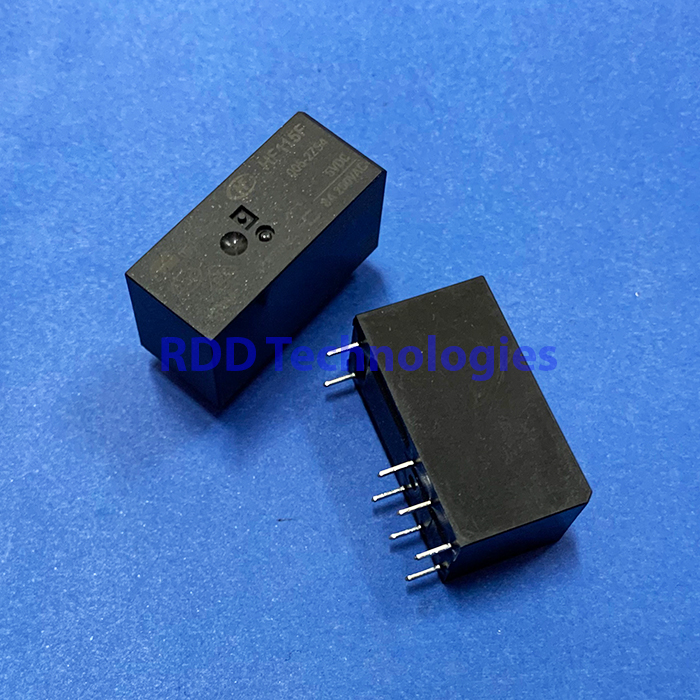

RELAY 5V DPDT HONGFA HF115F-005-2ZS4 HF
Rp40.600
Miniature High Power Relay
Stok 42
| Manufacturer | HONGFA |
| Packaging | DIP,29×12.7mm |
| Contact Material | AgCdO |
| Coil Type | Non-Polarized – Single Coil |
| Coil Voltage | 5V |
| Number of Pins | 8 |
| Operating Temperature | -40℃~+85℃ |
| Switching Current(Max) | 8A |
| Release Time | 8ms |
| Operate Time | 15ms |
| Contact Rating | 8A@250VAC |
| Contact Resistance | 100mΩ |
| Length | 29mm |
| Coil Rated Power | 400mW |
| Switching Voltage(Max) | 440V@AC;300V@DC |
| Width | 12.7mm |
| Contact Form | 2 Form C: 2C (DPDT-CO) |
| Coil Resistance | 62Ω |
