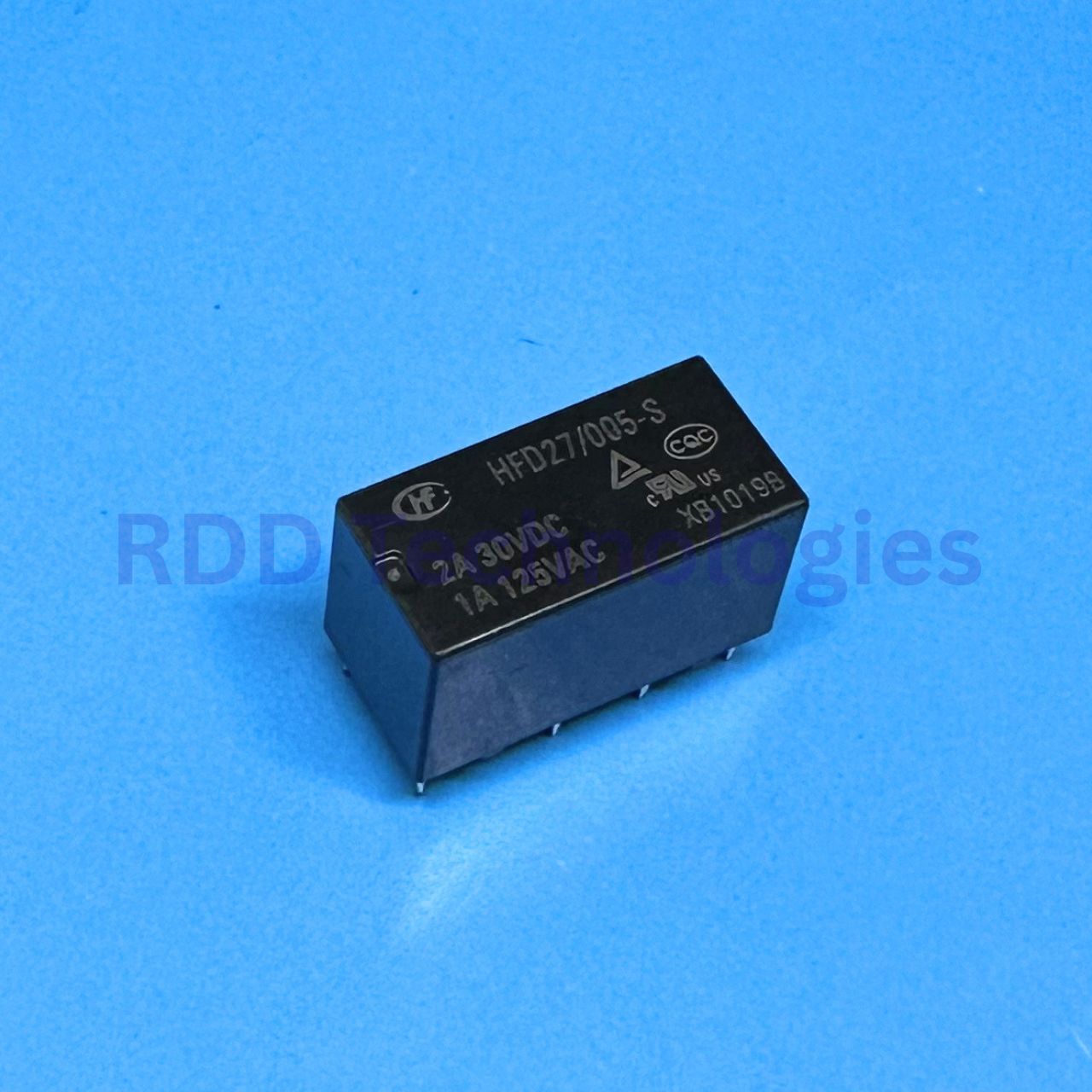

RELAY 5V DPDT HONGFA HFD27/005-S 2 FORM C
Rp17.500
SUBMINIATURE DIP RELAY
Stok 56
| Manufacturer | HONGFA |
| Packaging | DIP,20.2×10.2mm |
| Contact Material | AgNi + Gold plated |
| Coil Type | Non-Polarized – Single Coil |
| Coil Voltage | 5V |
| Number of Pins | 8 |
| Operating Temperature | -40℃~+85℃ |
| Switching Current(Max) | 2A |
| Release Time | 4ms |
| Operate Time | 7ms |
| Contact Resistance | 100mΩ |
| Contact Rating | 1A@125VAC;2A@30VDC |
| Length | 20.2mm |
| Coil Rated Power | 200mW |
| Switching Voltage(Max) | 240V@AC;120V@DC |
| Width | 10.2mm |
| Contact Form | 2 Form C: 2C (DPDT-CO) |
| Coil Resistance | 125Ω |
