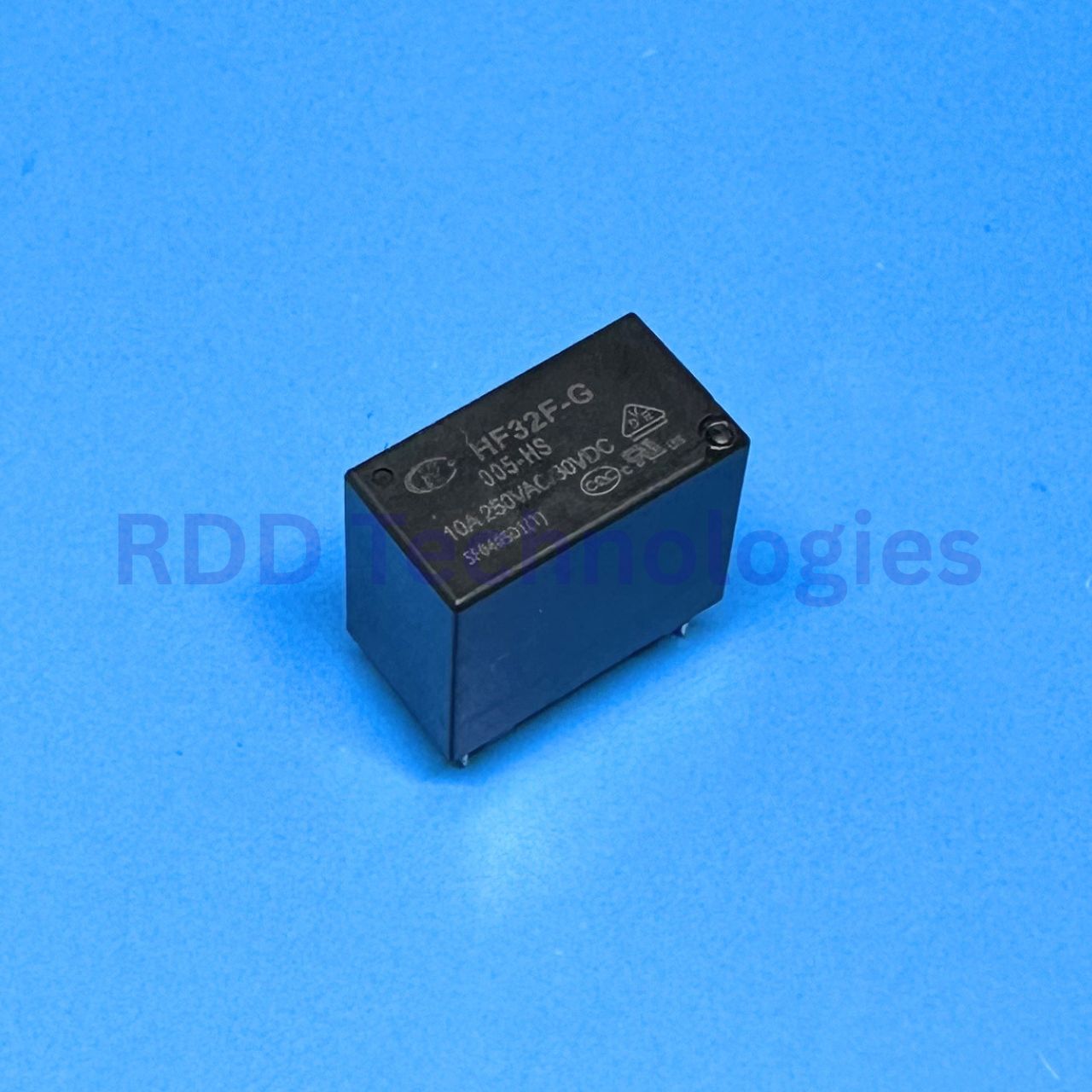

RELAY 5V SPST-NO 10A HONGFA HF32F-G/005-HS
Rp25.000
SUBMINIATURE INTERMEDIATE POWER RELAY
90 in stock
| Manufacturer | HONGFA |
| Packaging | Through Hole,18.4×10.2mm |
| Contact Material | AgCdO |
| Coil Type | Non-Polarized – Single Coil |
| Coil Voltage | 5V |
| Number of Pins | 4 |
| Operating Temperature | -40℃~+85℃ |
| Switching Current(Max) | 10A |
| Release Time | 5ms |
| Operate Time | 8ms |
| Contact Rating | 10A@250VAC;10A@30VDC |
| Contact Resistance | 100mΩ |
| Length | 18.4mm |
| Coil Rated Power | 450mW |
| Switching Voltage(Max) | 250V@AC;30V@DC |
| Width | 10.2mm |
| Contact Form | 1 Set Normally Open: 1A (SPST NO) |
| Coil Resistance | 55Ω |
