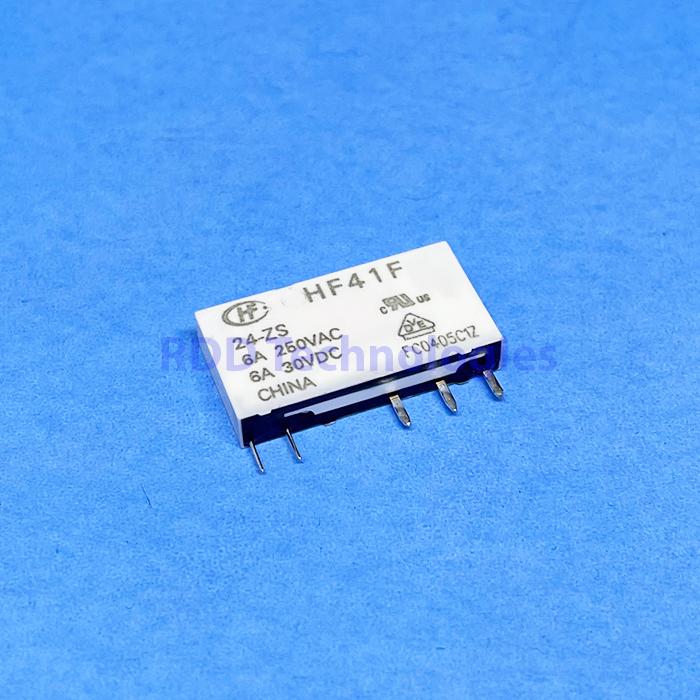

RELAY HF41F/24-ZS HONGFA SLIM RELAY 24VDC 6A SPDT
Rp62.500
HF41F SUBMINIATURE POWER RELAY
Stok 15
| Manufacturer | HONGFA |
| Packaging | SIP,28x5mm |
| Contact Material | AgNi |
| Coil Type | Non-Polarized – Single Coil |
| Coil Voltage | 24V |
| Number of Pins | 5 |
| Operating Temperature | -40℃~+85℃ |
| Switching Current(Max) | 6A |
| Release Time | 4ms |
| Operate Time | 8ms |
| Contact Rating | 6A@250VAC;6A@30VDC |
| Contact Resistance | 100mΩ |
| Length | 28mm |
| Coil Rated Power | 170mW |
| Switching Voltage(Max) | 400V@AC;125V@DC |
| Width | 5mm |
| Contact Form | One set changeover: 1C (SPDT – changeover) |
| Coil Resistance | 3.39kΩ |
