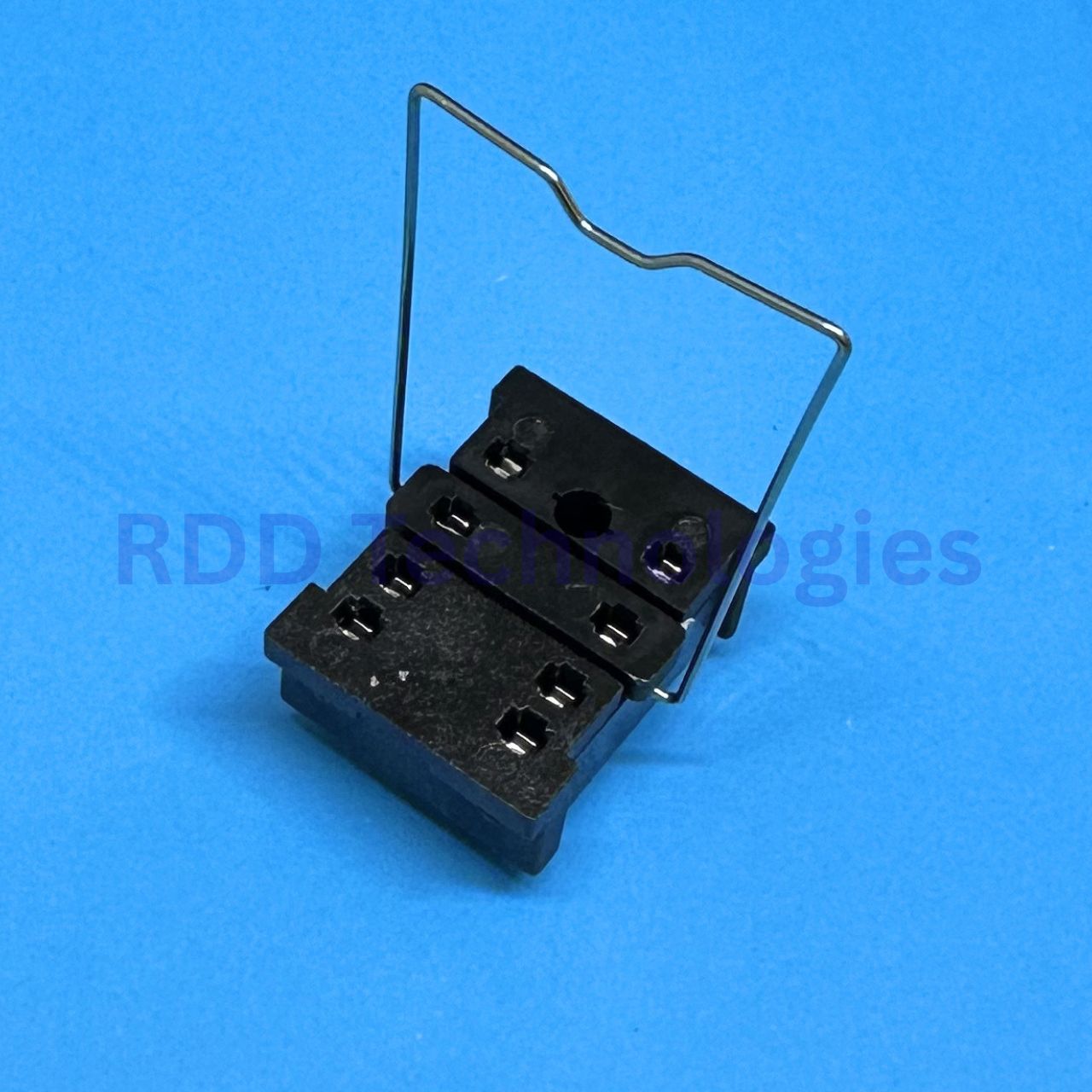

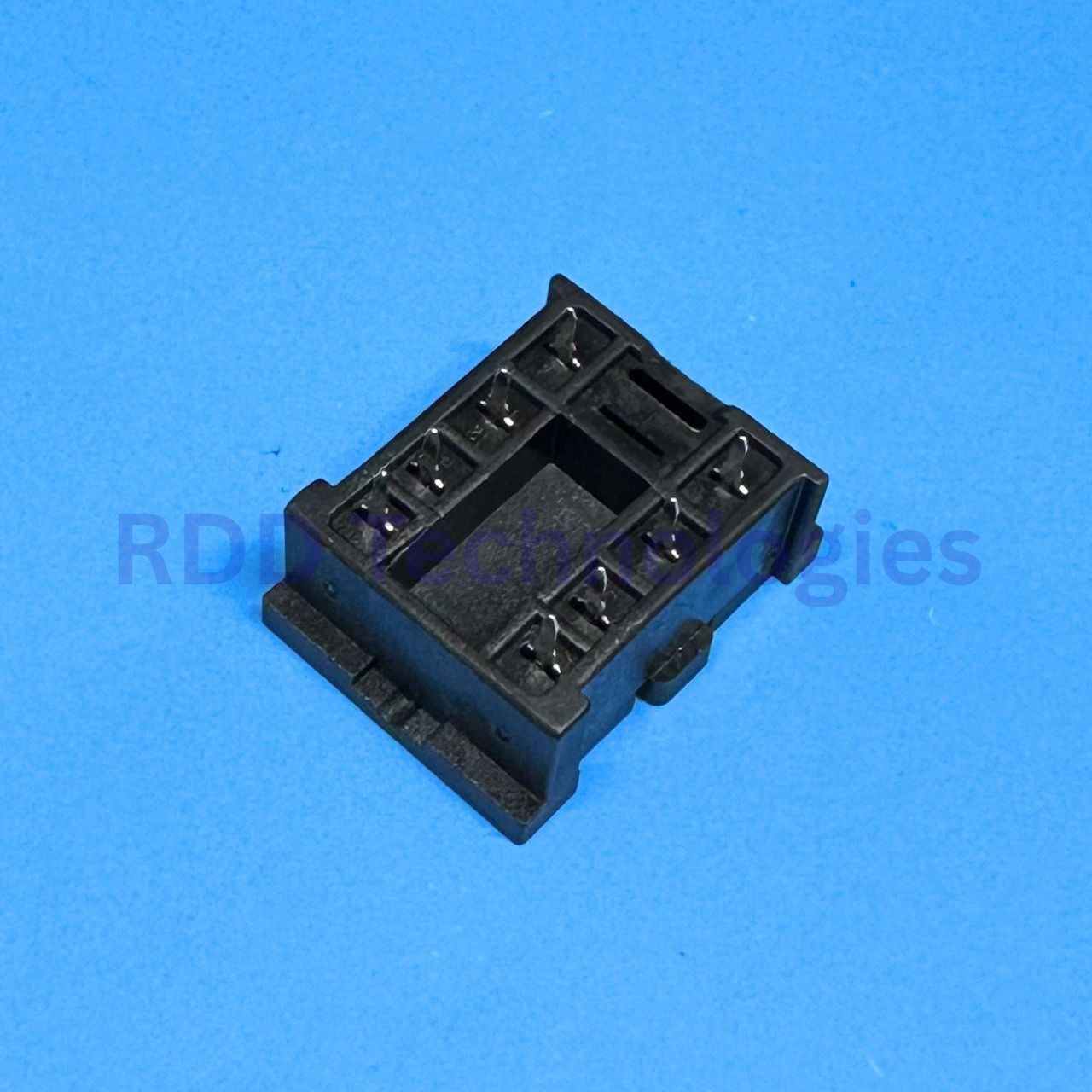

RELAY SOCKET PCB MOUNT 18F-2Z-A2 WITH HOOK (PY08-Y1)FOR MY2N
Rp9.200
18F-2Z-A2 relay socket with 10A/300V rated load, -25~+85°C temp range, 2000V/S dielectric strength, lightweight compact industrial component
241 in stock
| Color | Black |
| Length | 71mm |
| Width | 22mm |
| Height | 30.6mm |
| Rated Voltage | 300V |
| Rated Current | 10A |
| Insulation Voltage | 2.5KV |
| Min. Connection Capacity for Solid Wire | 0.5/20mm2/AWG |
| Max. Connection Capacity for Solid Wire | 1.5/16mm2/AWG |
| Min. Connection Capacity for Strand Wire | 0.5/20mm2/AWG |
| Max. Connection Capacity for Strand Wire | 1.5/16 |
| Housing Materials | PA66-GF(V1/V0) |
| Clip Spring Materials | QSn6.5-0.1 |
| Working Temperature | -25℃～+85℃ |
| Screw Size | M3 |
