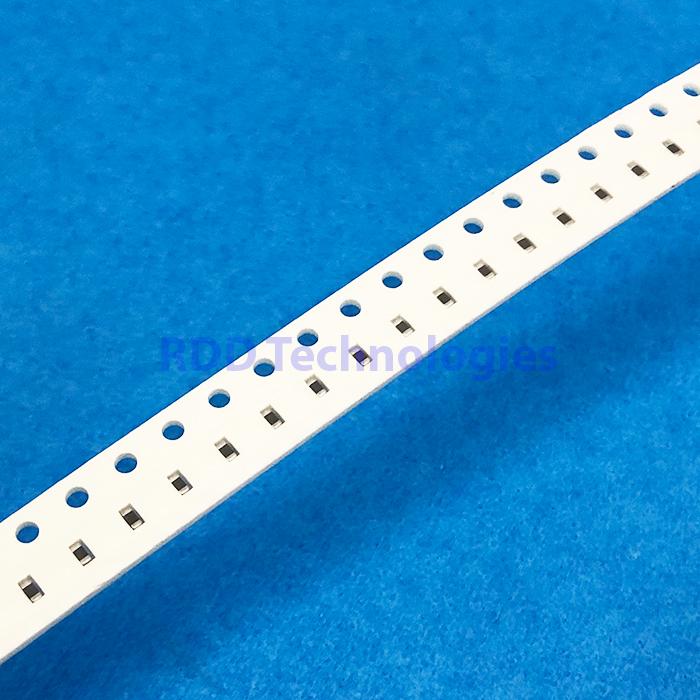

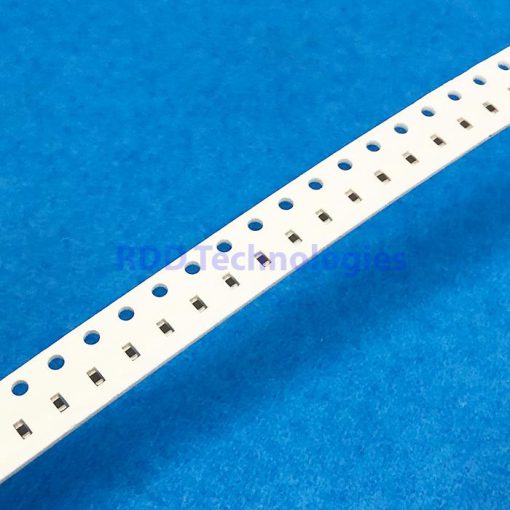

SMD FERRITE BEAD 0603 BLM18PG121SN1D 2A MURATA
Rp600
Ferrite Beads 120 OHM 25% Alternate Sizing Guide Below
4290 in stock
| RoHS: | Yes |
| Termination Style: | SMD/SMT |
| Package/Case: | 0603 (1608 metric) |
| Impedance: | 120 Ohms |
| Maximum DC Current: | 2 A |
| Tolerance: | 25.00% |
| Maximum DC Resistance: | 50 mOhms |
| Minimum Operating Temperature: | – 55 C |
| Maximum Operating Temperature: | + 125 C |
| Length: | 1.6 mm |
| Width: | 0.8 mm |
| Height: | 0.8 mm |
| Brand: | Murata Electronics |
| Test Frequency: | 100 MHz |
| Unit Weight: | 35 mg |
